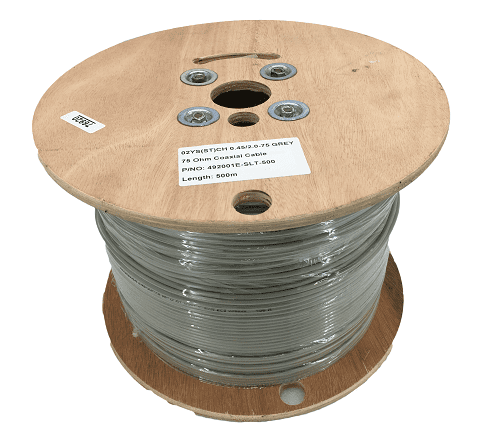

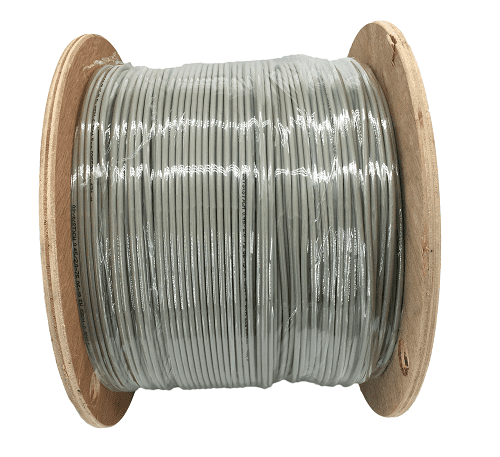

02YS(ST)CY 0.45/2.0-75 Silvered Copper PVC RAL7032 500m

£340.00 ex. VAT (£408.00 inc. VAT)

In Stock: 30

Product Code:  101-1003425-060/500

Specification:

Application
75 ohm coaxial cable are commonly used on low power/baseband video, antenna, RF signal and broadcast transmissions.

Description
75 Ohm coaxial cable with silver plated copper inner conductor, foam PE dielectric, AI/P-foil shielding, and tinned copper wire braid. Sheated overall in LSZH jacket (colour RAL7032).

Mechanical Characteristics
Construction:
    Inner Conductor: 0.45 +0.02mm Silver Plated Copper
    Dielectric: Foamed Polyethylene
 Shielding:  Al/P-Foil Coverage ≥ 120%
 Screen:
Tinned Copper Wire Braid
Coverage 85% +/-3
    Sheath/Colour:
PVC/RAL7032
Insulation Diameter: 1.95 +0.01mm
Sheath Diameter: 3.40 +0.01mm
Storage/Operating Temperature: -40°C to + 75°C
Minimum Installation Temperature: -5°C
Min. Bending Radius:
11mm Installation 34mm Repeated
Max. Pulling Tension: 240
Crush Resistance: <1% (Load of 700N)
Electrical Characteristics
Characteristic Impedance: 75 ± 3 Ohm
Capacitance: 53pF/m (Nominal)
Velocity Ratio: 0.85
DC Resistance Inner Conductor: ≤115 Ω/km @ 20°C
DC Resistance Inner Conductor: ≤25 Ω/km @ 20°C
Dielectric Strength: 1000VCA
Insulation Resistance: >10000MΩ/km
Operating Voltage:  300V
Propagation Time: 3.9ns/m
Return Loss:
>22dB (30-1000MHz)
>18dB (Single Peaks)
Screening Efficiency: >75dB
Attenuation (d/B 100m @ 20°C):
1MHz <1.80
3MHz <3.00
10MHz <4.70
30MHz <7.90
100MHz <14.80
200MHz <21.00
500MHz  <34.00
1000MHz

<48.00
