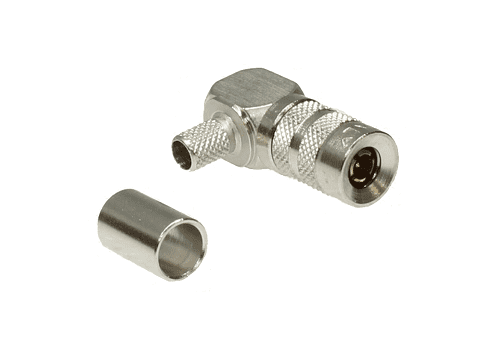

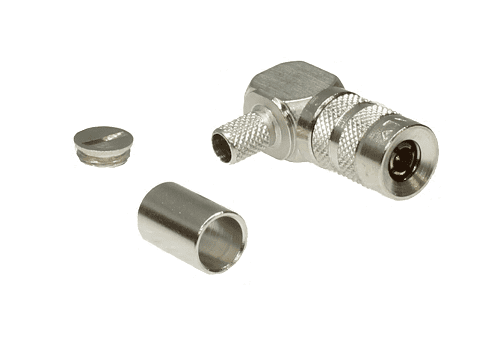

1.0/2.3 Right Angled Crimp Plug RA7000, ST121, 0.6/2.8
£1.75 ex. VAT
(£2.10 inc. VAT)
Product Code:
205-1607-004
Specification:
Specification:
Materials & Plating
Body - CW 614 as per UNI EN 12164
Conductor - Beryllium Copper, Gold Plated
Insulator - PTFE
Crimp Ferrule - Soft Copper, Nickel Plated
Electrical Characteristics
Impedance - 50 ohm / 75 ohm
Frequency Range - 10 GHz (50 ohm) / 500 MHz (75 ohm)
Contact Resistance - Centre (initial) < 4m, Outer < 2.5m
Contact Resistance - Centre (after conditioning) initial + 6m, Outer initial + 5m
Insulation Resistance - >1 GOhm (initial), >200 MOhm (after Conditioning)
Mechanical Characteristics
Mating and Dimensions - as per CEI CECC EN 122 230 Type D
Durability - >500 cycles
Environmental Characteristics
Temperature Range: - 40°C to +85°C

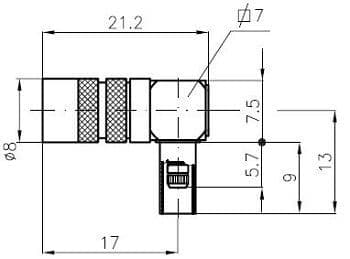

Drawing:
Assembly:
Pin: Solder
Outer: 5.4 mm hex
