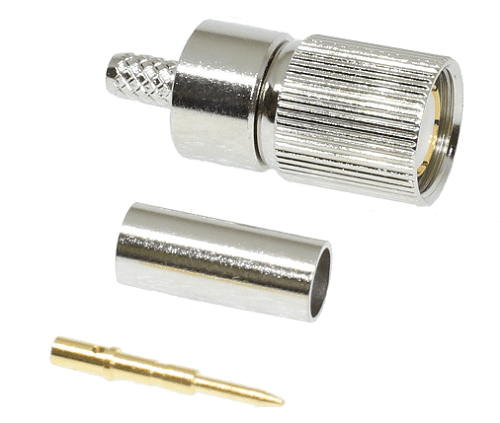

Specification:
Electrical Specification
Impedance - 75 ohm
Frequency Range - 0-3 GHz (cable limited)
Dielectric Withstanding Voltage - 1500 Veff
Insulation Resistance - 5000 M-Ohm
Mechanical Specification
Centre Contact Retention
Axial Force - 27 N min
Cable Retention - 150 N min
Mating Cycles - 250
Weight - 3.56g
Environmental Specification
Temperature Range: - 55°C to +155°C

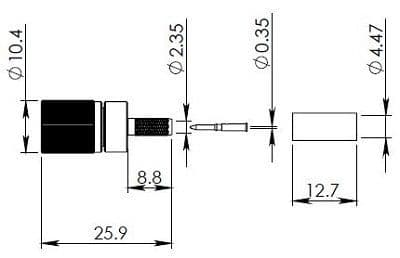

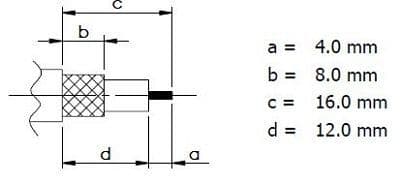

Drawing
Tooling
Centre Contact: Indent Crimp
Tool no: AFM8 (IG0011-C POSITIONER)
Crimp Sleeve: Hex 4.52mm A/F
Tool No: VC Die Set or 336J
