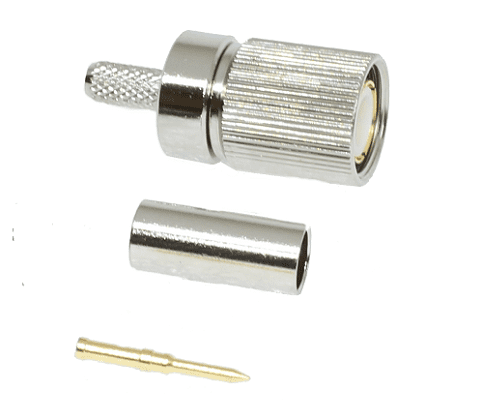

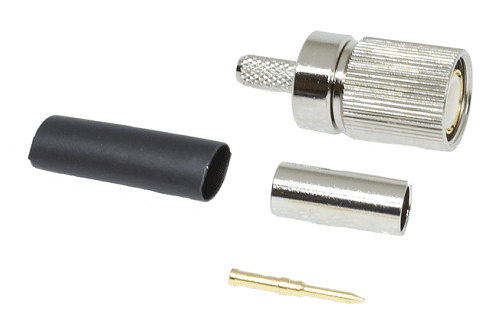

1.6/5.6 Crimp Plug BT3002 (solder pin)

£1.20 ex. VAT (£1.44 inc. VAT)

In Stock: 500

Product Code:  206-1005S-070

Specification:

Specification:

Materials & Plating
Shell/Body - Brass/Phosphor,Bronze, Gold Plated
Conductor - Brass, Gold Plated
Insulator - PTFE
Crimp Suite - H62, Nickel Plated
But - Brass, Nickel Plated

Electrical Characteristics
Impedance - 75 ohm
Frequency Range Max. - DC - 1GHz
Dielectric Withstanding Voltage - 1000V (RMS)
Dielectric Resistant - 10000M
Contact Resistance - Centre 4m, Outer 2m

Mechanical Characteristics
Mating - M9x0.5-6H
Durability - 500

Environmental Characteristics
Temperature Range: - 55°C to +155°C

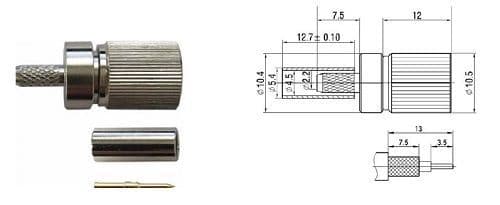

Drawing:


Pin: Solder
Outer: 4.75mm hex
