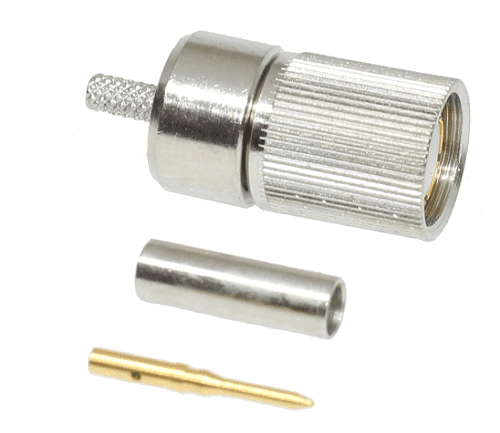

Specification:
Specification:
Materials & Plating
Bodies, Nuts, Sleeves - CW 614 N as per UNI EN 12164
Male Inner Contacts - CW 614 N as per UNI EN 12164
Female Inner Contacts - Beryllium Copper
Resilient Auter Plug Contacts - Beryllium Copper
Insulator - PTFE (Teflon)
Electrical Characteristics
Impedance - 75 ohm
Frequency Range - 4 GHz
Contact Resistance - Centre (initial) < 4m, Outer < 2m
Contact Resistance - Centre (after conditioning) initial + 4m, Outer initial + 2m
Insulation Resistance - >10 GOhm (initial), >1 MOhm (after Conditioning)
Mechanical Characteristics
Mating and Dimensions - as per CEI CECC EN 122 240
Durability - >500 cycles
Environmental Characteristics
Temperature Range: - 40°C to +85°C
Drawing:
L=31.7 mm
Assembly:
Pin: 1.2 mm square
Outer: 3.25 mm hex
