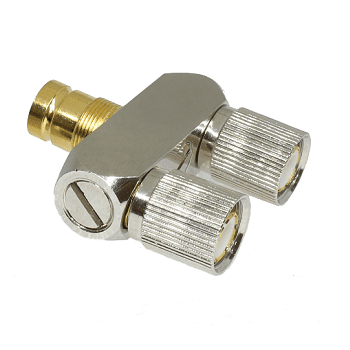

1.6/5.6 U Link with monitor 20mm (centre)

£1.90 ex. VAT (£2.28 inc. VAT)

In Stock: 75

Product Code:  206-8820-070

Specification:

Specification:

Materials & Plating
Shell/Body - Brass, Nickel Plated
Conductor - Brass/Phosphor Bronze, Gold Plated
Insulator - PTFE

Electrical Characteristics
Impedance - 75 ohm
Frequency Range Max. - DC - 1GHz
Dielectric Withstanding Voltage - 1000V (RMS)
Contact Resistance - Centre ≤ 4mΩ, Outer ≤ 2mΩ
Insulation Resistance - ≥ 10000mΩ

Mechanical Characteristics
Mating - M9x0.5-6g
Durability - ≥ 500 cycles

Environmental Characteristics
Temperature Range: - 40°C to +85 °C

Drawing:
​​​​​​​
