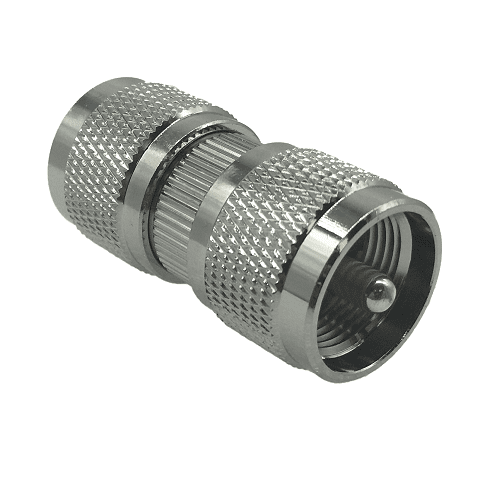

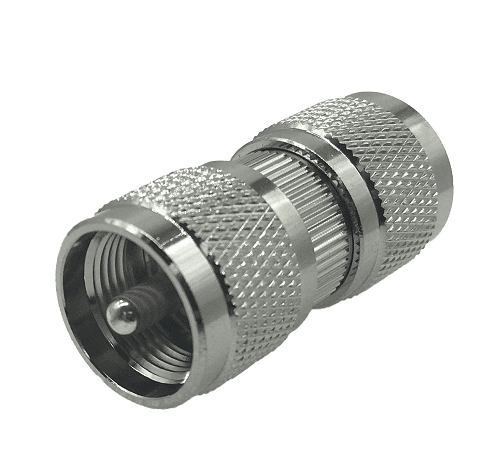

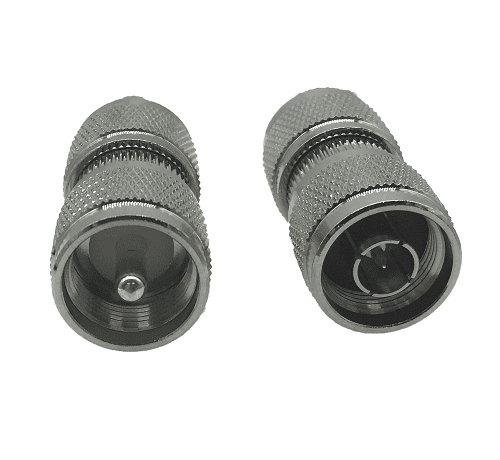

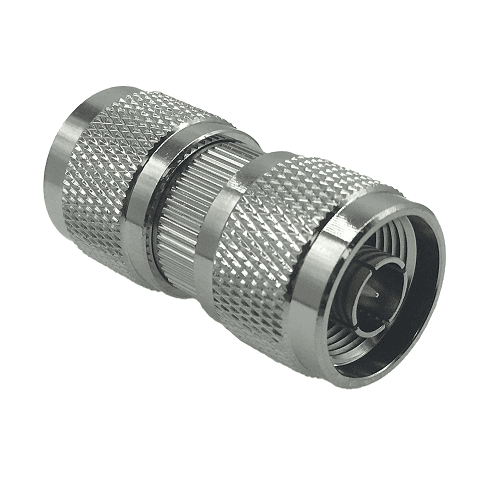

Adaptor UHF Male to N Male

Qty From	Qty To	Unit Price
1	9	£3.14
10	49	£2.86
50	∞	£2.62

In Stock: 41

Product Code: 290-5179-070

Specification:

Materials & Plating
Shell/Body - Brass, Nickel Plated
Conductor - Brass, Gold Plated
Insulator - PTFE

Electrical Characteristics
Impedance - 50 ohm
Frequency Range Max. - DC - 300MHz
Dielectric Withstanding Voltage - 750V(RMS)
Contact Resistance - Centre ≤ 5mΩ, Outer ≤ 5mΩ
Insulation Resistance - ≥ 5000mΩ

Mechanical Characteristics
Mating - 5/8-24UNEF-2B,
Durability - ≥ 500 cycles

Environmental Characteristics
Temperature Range: - 40°C to +85°C

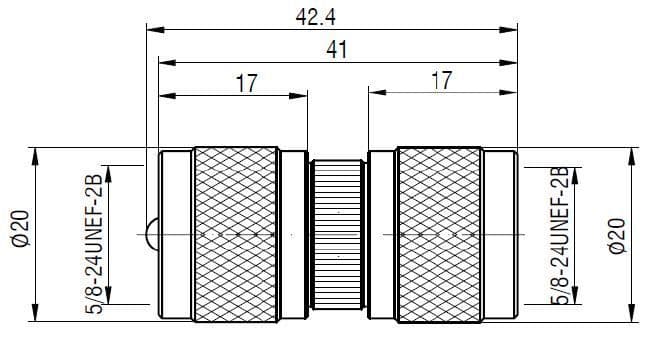

Drawing:
