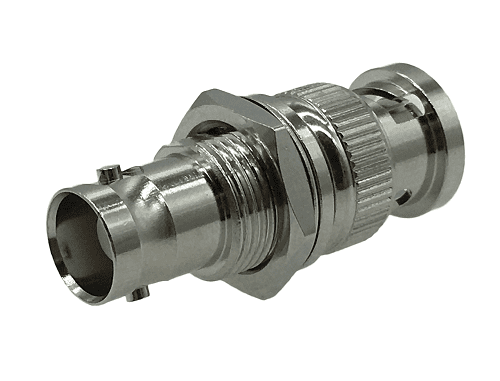

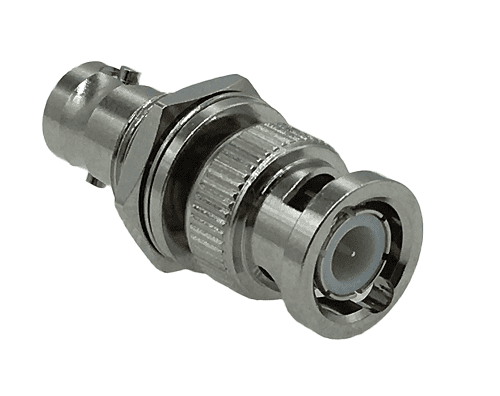

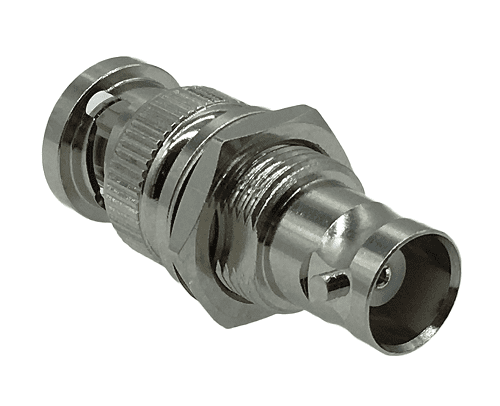

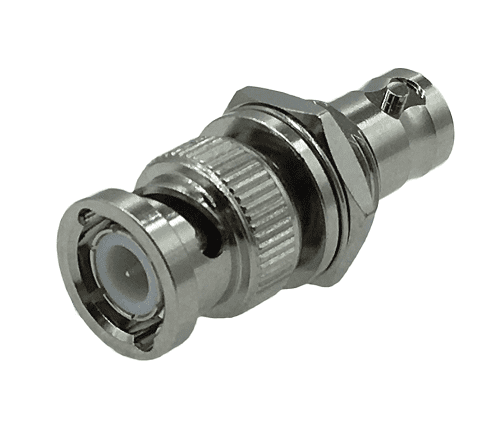

BNC Bulkhead Adaptor Jack/Plug 50 ohm

£3.68 ex. VAT (£4.42 inc. VAT)

In Stock: 100

Product Code:  211-8600-107

Specification:

Materials & Plating
Body - Brass, Nickel Plated
Pin - Brass, Gold Plated
Dielectric - Teflon
Retaining Ring - SK-5, Nickel Plated
Shell - Brass, Nickel Plated
Washer - Iron, Nickel Plated
Spring - SK-5, Nickel Plated
Gasket Rubber
BKD Washer - Iron, Nickel Plated
BKD Nut - Brass, Nickel Plated

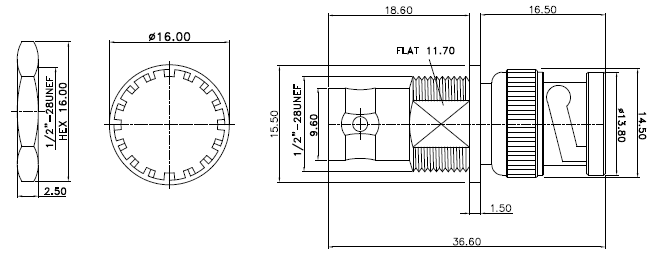

Drawing
