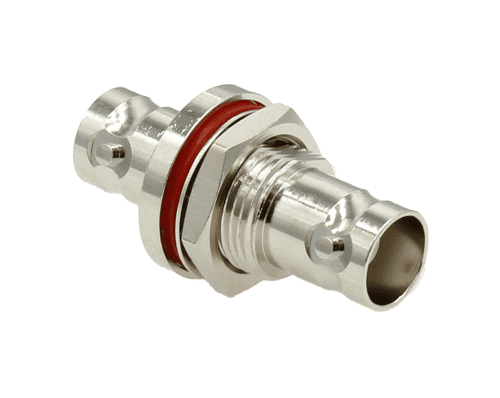

BNC Bulkhead Jack/Jack Adaptor 50 ohm...
| Qty From | Qty To | Unit Price |
|---|---|---|
| 1 | 9 | £1.80 |
| 10 | 49 | £1.63 |
| 50 | ∞ | £1.50 |
Product Code:
211-8500-070
Specification:
Materials & Plating
Shell/Body - Brass, Nickel Plated
Contact Pin - Brass, Gold Plated
Insulator - ABS
Electrical Characteristics
Characteristic Impedance - 50 ohm
Frequency range - DC-2GHz
Dielectric Withstanding Voltage - 1500 (RMS)
Contact Resistance - Center contact ≤1.5mΩ, Outer contact ≤1.mΩ
Insulation Resistance - ≥5000MΩ
Mechanical Characteristics
Mating - bayonet lock
Durability - Mating cycle ≥500 cycle
Environmental Characteristic
Temperature Range: - 40°C to +85°C
