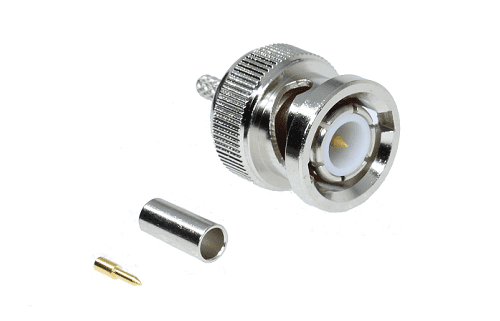

BNC Crimp Plug RG174

Qty From Qty To Unit Price
1 99 £1.02
100 ∞ £0.85

In Stock: 152

Product Code:  211-1074-070

Specification:

Specification:

Materials & Plating
Shell/Body - Brass, Nickel Plated
Conductor - Brass, Gold Plated
Insulator - PTFE
Crimp Ferrule - Brass, Nickel Plated

Electrical Characteristics
Impedance - 50 ohm
Frequency Range Max. - DC - 2GHz
Dielectric Withstanding Voltage - 1500V(RMS)
Contact Resistance - Centre ≤ 1.5mΩ, Outer ≤ 1mΩ
Insulation Resistance - ≥ 5000mΩ

Mechanical Characteristics
Mating - bayonet lock
Durability - ≥ 500 cycles

Environmental Characteristics
Temperature Range: - 55°C to +155°C

Drawing:




Assembly:
Pin: 1.07 mm hex
Outer: 3.25 mm hex
