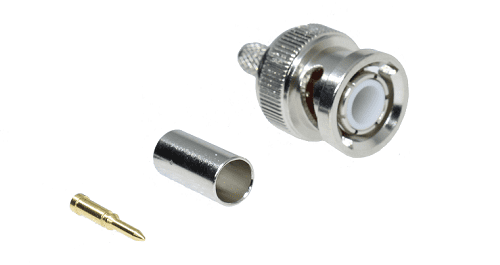

BNC Crimp Plug RG58, LMR195
| Qty From | Qty To | Unit Price |
|---|---|---|
| 1 | 49 | £1.20 |
| 50 | 99 | £1.10 |
| 100 | 499 | £1.00 |
| 500 | ∞ | £0.87 |
Product Code:
211-1058-070
Specification:
Specification:
Materials & Plating
Shell/Body - Brass, Nickel Plated
Conductor - Brass, Gold Plated
Insulator - PTFE
Crimp Ferrule - Brass, Nickel Plated
Electrical Characteristics
Impedance - 50 ohm
Frequency Range Max. - DC - 2GHz
Dielectric Withstanding Voltage - 1500V(RMS)
Contact Resistance - Centre ≤ 1mΩ, Outer ≤ 1mΩ
Insulation Resistance - ≥ 5000mΩ
Mechanical Characteristics
Mating - bayonet lock
Durability - ≥ 500 cycles
Environmental Characteristics
Temperature Range: - 40°C to +85°C
Drawing:
Assembly:
Pin: 1.72 mm hex
Outer: 5.41 mm hex
