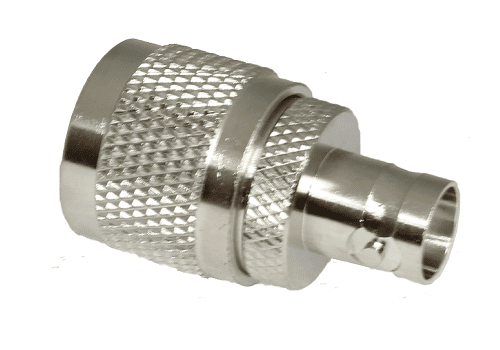

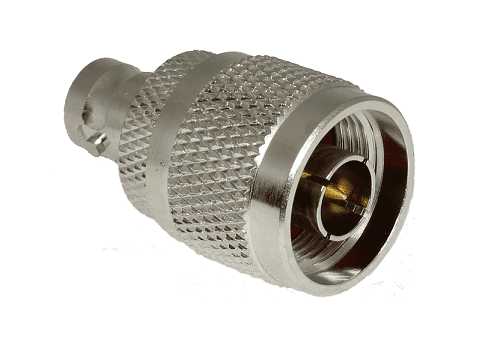

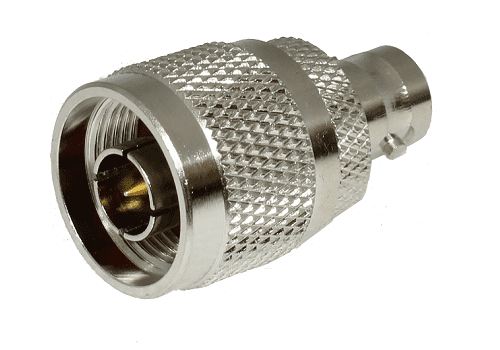

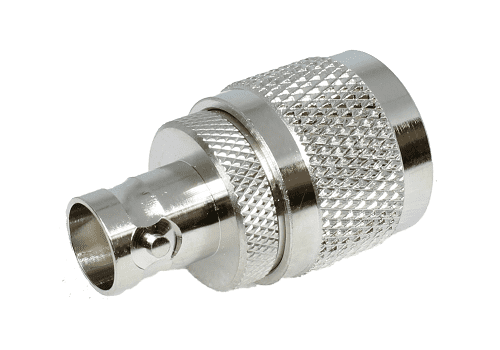

BNC Jack - N Plug

Qty From	Qty To	Unit Price
1	9	£2.28
10	49	£2.07
50	∞	£1.90

In Stock: 83

Product Code: 290-5030-070

Specification:

Specification:

Materials & Plating
Shell/Body - Brass, Nickel Plated
Conductor - Bronze, Gold Plated
Insulator - PTFE

Electrical Characteristics
Impedance - 50 ohm
Frequency Range Max. - DC - 2GHz
Dielectric Withstanding Voltage - 1000V (RMS)
Contact Resistance - Centre ≤ 1.5mΩ, Outer ≤ 1mΩ
Insulation Resistance - ≥ 5000mΩ

Mechanical Characteristics
Mating - N: 8/8-24UNF-2B, BNC: Bayonet Lock
Durability - ≥ 500 cycles

Environmental Characteristics
Temperature Range : - 55°C to +155°C

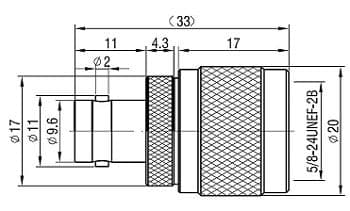

Drawing:
