Specification:
Interface According to
IEC 60169-16/ IEC 60169-8
Electrical
Characteristic Impedance - 50 ohm
Frequency Range - DC-3GHz
VSWR - ≤1.15@DC-3000MHz
Insertion Loss - ≤0.10dB
Mechanical
Durability - Mating cycles ≥50
Material and Plating
Body - Brass, Nickel Plated
Insulator - PTFE
Center Conductor - Phosphor Bronze, Gold Plated
Coupling Nut - Brass Nickel Plated
Gasket - Silicone Rubber
Environmental
Temperature Range - -40℃～+85°C
Weatherproof Rate - IP68
RoHs Compliant

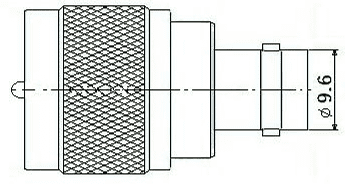

Drawing
