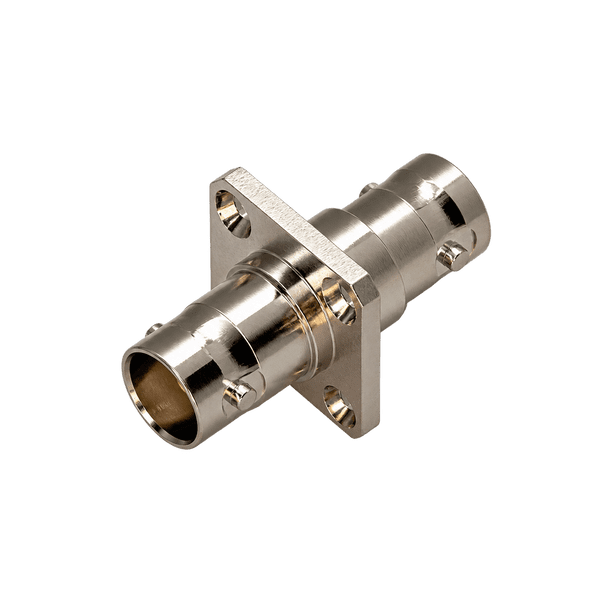

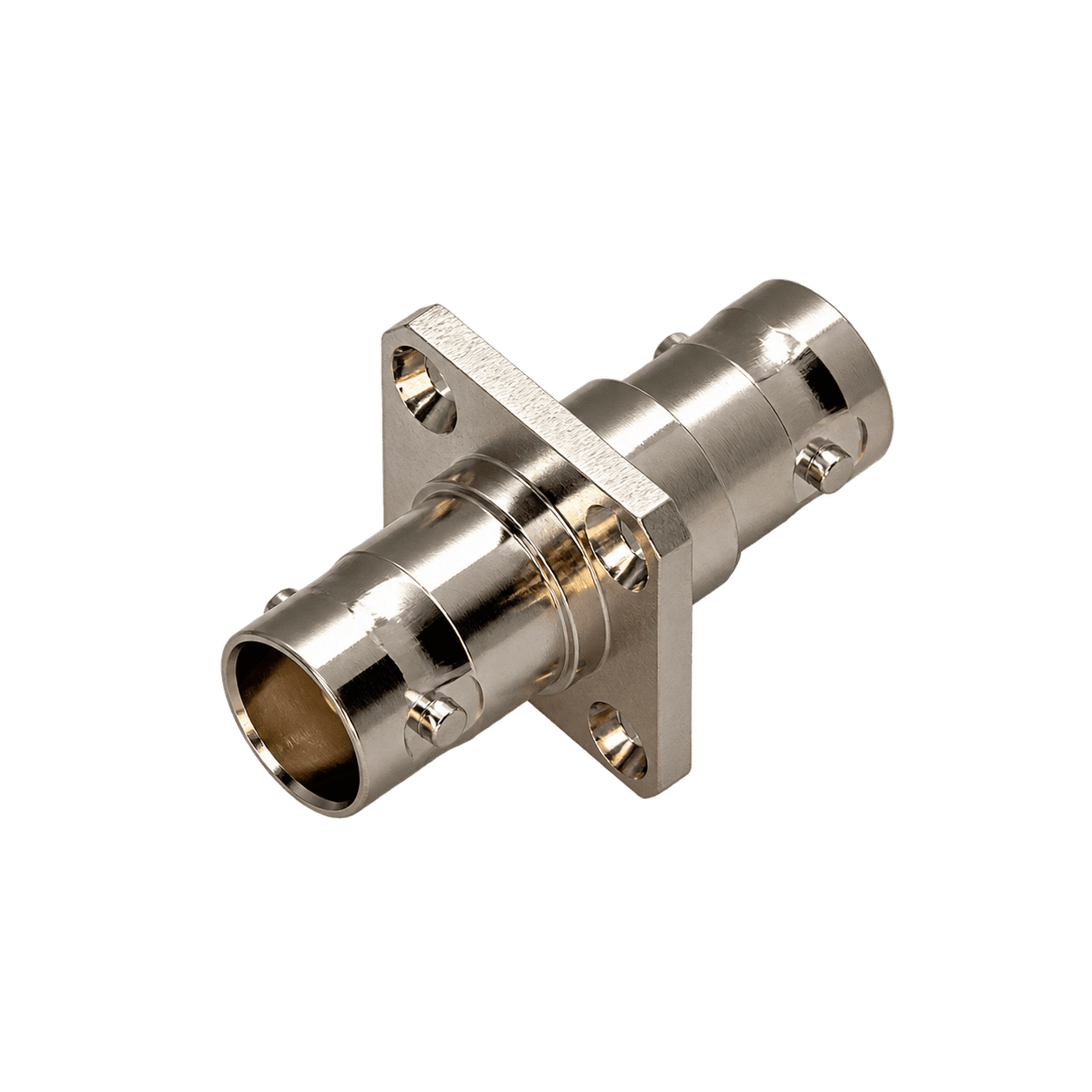

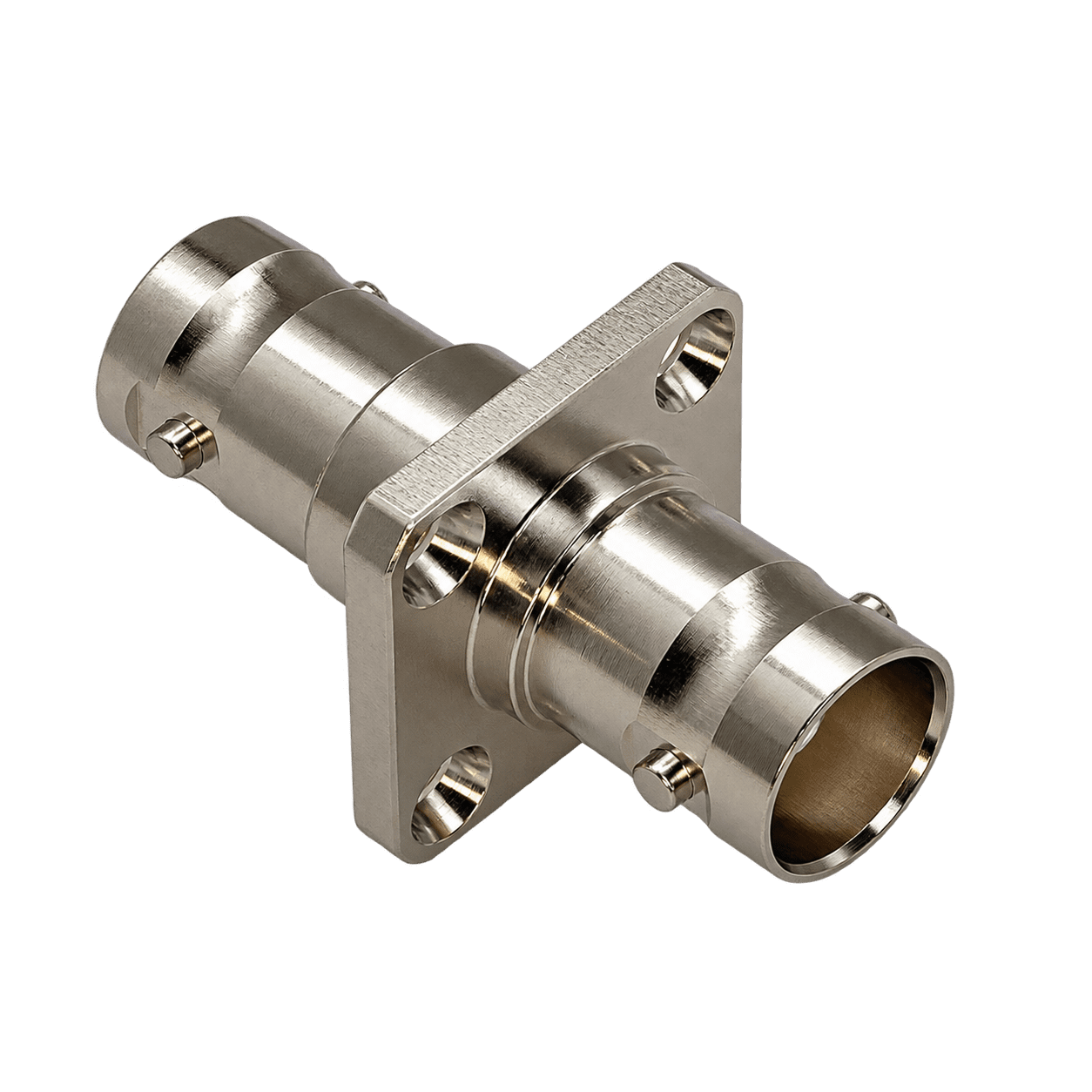

BNC Jack/ Jack Adaptor 4 Hole Square Flange (18.5/12.7/3.0) 50-ohm

Specification:

Electrical Characteristics
Temperature Range - -65°C～+165°C
Vibration - MIL-STD-202, Method 213
Impedance - 50Ω
Frequency Range - DC~3GHz
Working Voltage - 500V max
Withstand Voltage - 1500V rms (at sea level)
Contact Resistance - Centre ≤1.5mΩ, Outer ≤1mΩ
Insulation Resistance - ≥5000mΩ
VSWR Straight - ≤1.35
Durability (mating) - ≥500 cycles

Materials & Plating
Shell - Brass, Nickel Plated
Socket - Tin Brass, Gold Plated
Insulator - PTFE or PE
O-Ring Sealing - 6146 Silastic

Applicable Standard
MIL-C-39012
CECC 22120
IEC 60169-8

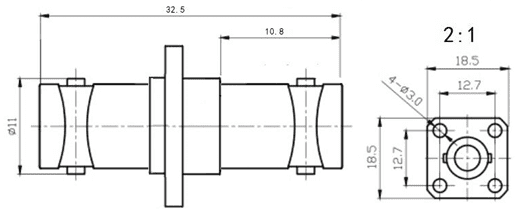

Drawing
