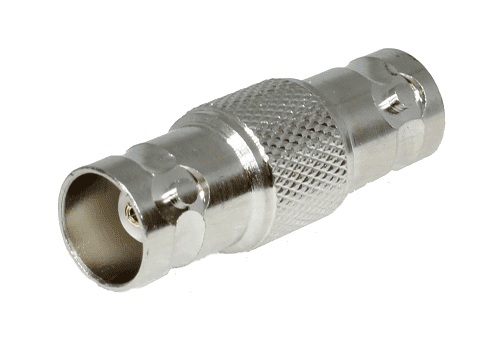

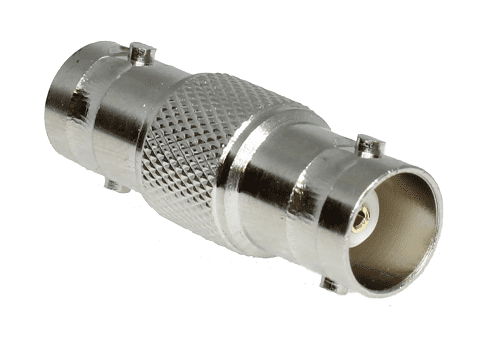

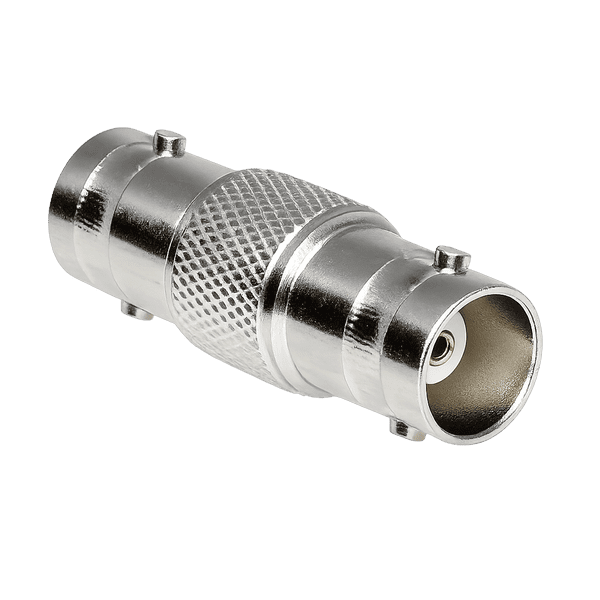

BNC Jack/Jack Adaptor (50 ohm)

Qty From	Qty To	Unit Price
1	9	£1.70
10	49	£1.55
50	∞	£1.45

In Stock: 91

Product Code: 211-8000-070

Specification:

Specification:

Materials & Plating
Shell/Body - Brass, Nickel Plated
Conductor - Brass, Gold Plated
Insulator - ABS

Electrical Characteristics
Impedance - 50 ohm
Frequency Range Max. - DC - 3GHz
Dielectric Withstanding Voltage - 1500V (RMS)
Contact Resistance - Centre ≤ 1mΩ, Outer ≤ 1mΩ
Insulation Resistance - ≥ 5000mΩ

Mechanical Characteristics
Mating - bayonet lock
Durability - ≥ 500 cycles

Environmental Characteristics
Temperature Range: - 40°C to +85°C

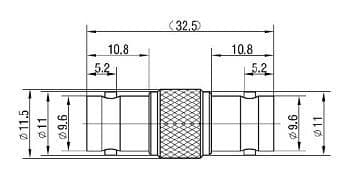

Drawing:
