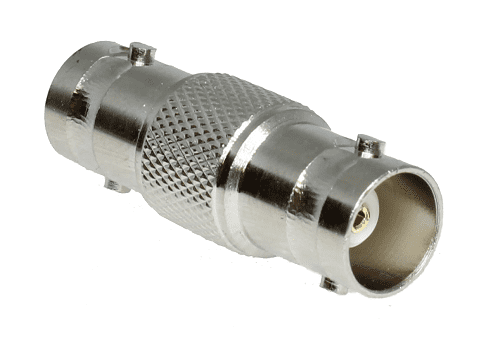

BNC Jack/Jack Adaptor (75 ohm)

£1.07 ex. VAT (£1.28 inc. VAT)

In Stock: 56

Product Code:  210-8000-070

Specification:

Specification:

Materials & Plating
Shell/Body - Brass, Nickel Plated
Conductor - Bronze, Gold Plated
Insulator - ABS

Electrical Characteristics
Impedance - 75 ohm
Frequency Range Max. - DC - 2GHz
Dielectric Withstanding Voltage - 1500V(RMS)
Contact Resistance - Centre ≤ 1.5mΩ, Outer ≤ 1mΩ
Insulation Resistance - ≥ 5000mΩ

Mechanical Characteristics
Mating - bayonet lock
Durability - ≥ 500 cycles

Environmental Characteristics
Temperature Range: - 40°C to +85°C

Drawing:
