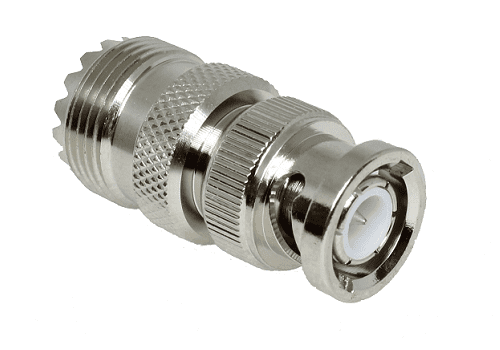

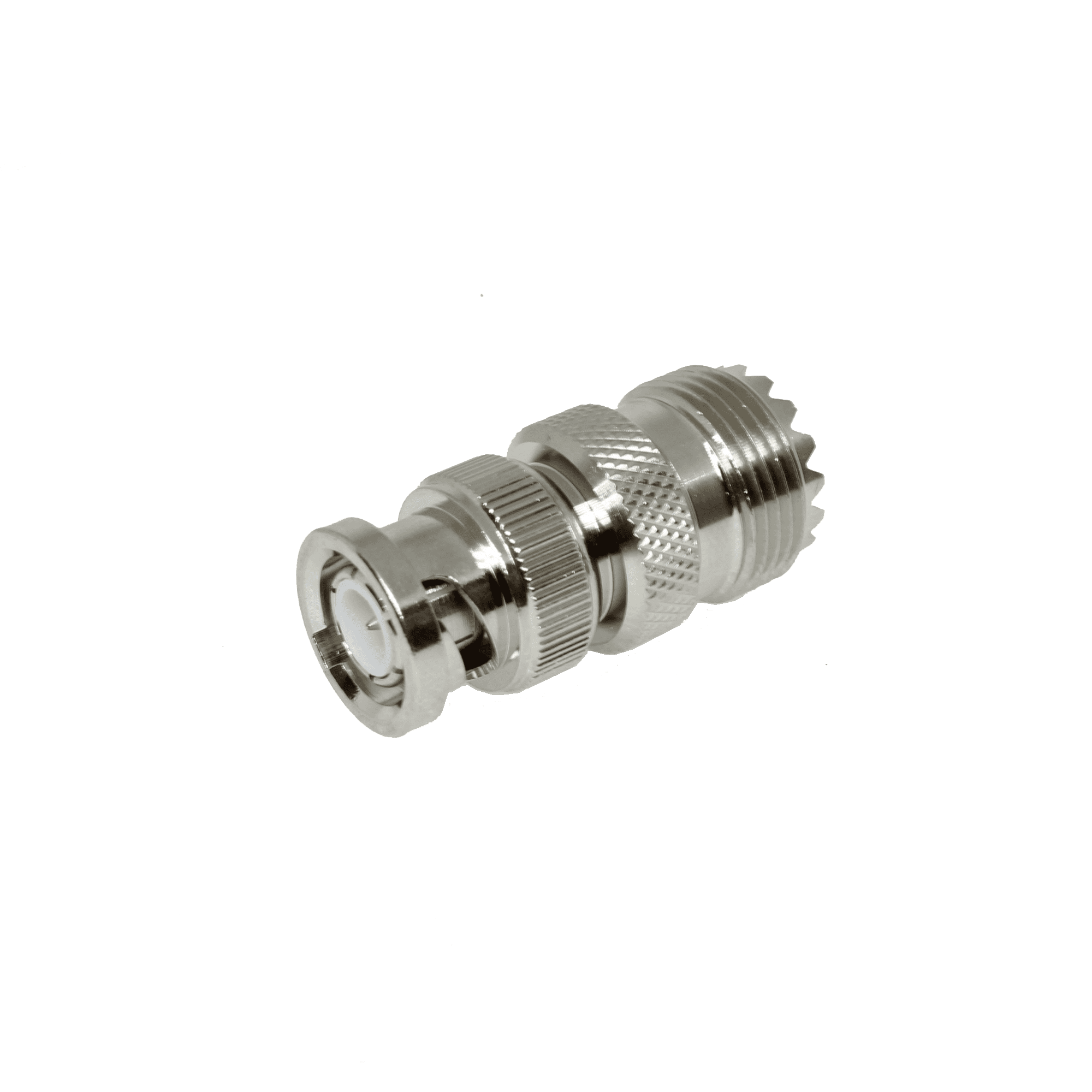

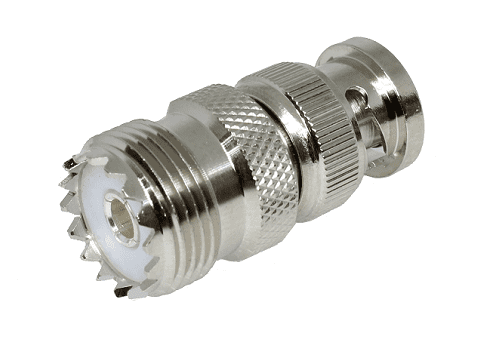

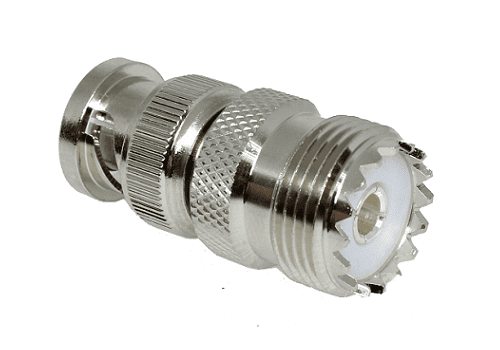

BNC Plug - UHF Jack

£1.48 ex. VAT (£1.78 inc. VAT)

In Stock: 7

Product Code: 290-5063-070

Specification:

Specification:

Materials & Plating
Shell/Body - Brass, Nickel Plated
Conductor - Brass, Silver Plated
Insulator - ABS

Electrical Characteristics
Impedance - 50 ohm
Frequency Range Max. - DC - 300 MHz
Dielectric Withstanding Voltage - 750V(RMS)
Contact Resistance - Centre ≤ 5mΩ, Outer ≤ 5mΩ
Insulation Resistance - ≥ 5000mΩ

Mechanical Characteristics
Mating -BNC: bayonet lock UHF:5/8-24UNEF-2B
Durability - ≥ 500 cycles

Environmental Characteristics
Temperature Range: -40°C to +85°C

Drawing:
