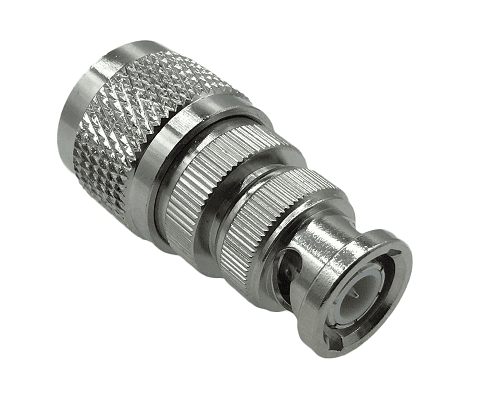

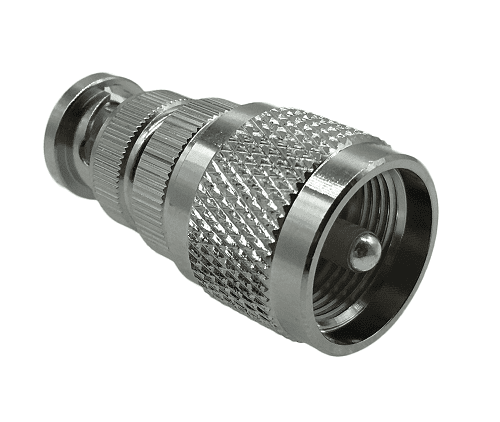

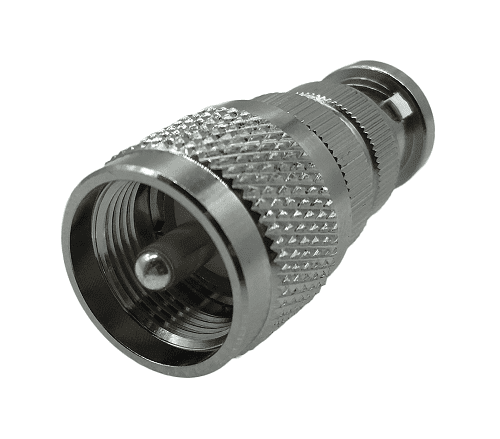

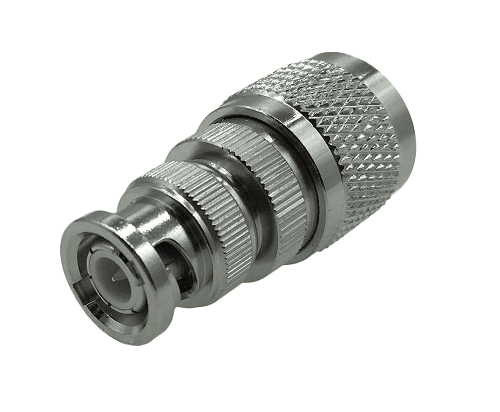

BNC Plug - UHF Plug.

£2.96 ex. VAT (£3.55 inc. VAT)

In Stock: 17

Product Code: 290-5061-070

Specification:

Materials & Plating
Shell/Body - Brass, Nickel Plated
Conductor - Brass, Silver Plated
Insulator - PTFE

Electrical Characteristics
Impedance - 50 ohm
Frequency Range Max. - DC - 300GHz
Dielectric Withstanding Voltage - 750V(RMS)
Contact Resistance - Centre ≤ 5mΩ, Outer ≤ 5mΩ
Insulation Resistance - ≥ 5000mΩ

Mechanical Characteristics
Mating - BNC: bayonet lock UHF:5/8-24UNEF-2B
Durability - ≥ 500 cycles

Environmental Characteristics
Temperature Range: - 55°C to +155°C

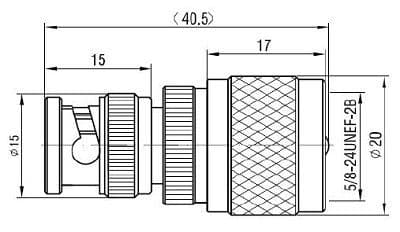

Drawing:
