BNC Plug - UHF Plug..
| Qty From | Qty To | Unit Price |
|---|---|---|
| 1 | 9 | £2.70 |
| 10 | 49 | £2.15 |
| 50 | ∞ | £1.96 |
Product Code:
290-5061-160
Specification:
Specification:
Electrical Characteristics
Temperature Range - -40°C～+85°C
Impedance - Non-constant
Frequency Range - DC~3GHz (50Ω)
Working Voltage - 750V max
Withstand Voltage - 2000V rms (at sea level)
Contact Resistance - Centre ≤5mΩ, Outer ≤5mΩ
Insulation Resistance - ≥5000mΩ
Durability (mating) - ≥500 cycles
Materials & Plating
Shell - Brass, Nickel Plated
Contact Pin - Brass, Gold Plated
Insulator - PTFE
O-ring sealing - 6146 silastic
APPLICABLE STANDARD
IEC 60169-12

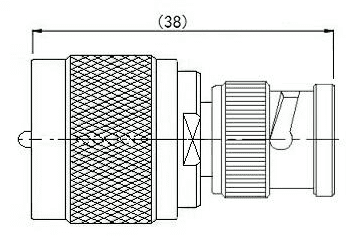

Drawing
Electrical Characteristics
Temperature Range - -40°C～+85°C
Impedance - Non-constant
Frequency Range - DC~3GHz (50Ω)
Working Voltage - 750V max
Withstand Voltage - 2000V rms (at sea level)
Contact Resistance - Centre ≤5mΩ, Outer ≤5mΩ
Insulation Resistance - ≥5000mΩ
Durability (mating) - ≥500 cycles
Materials & Plating
Shell - Brass, Nickel Plated
Contact Pin - Brass, Gold Plated
Insulator - PTFE
O-ring sealing - 6146 silastic
APPLICABLE STANDARD
IEC 60169-12
Drawing
