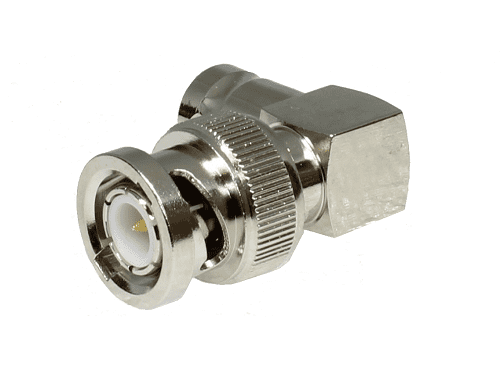

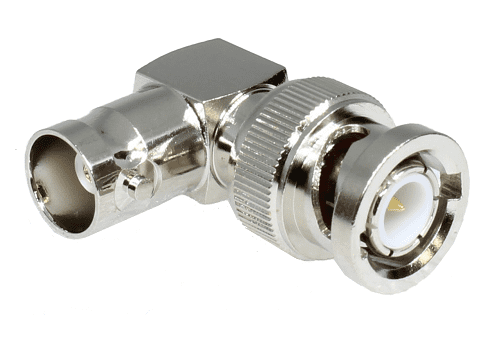

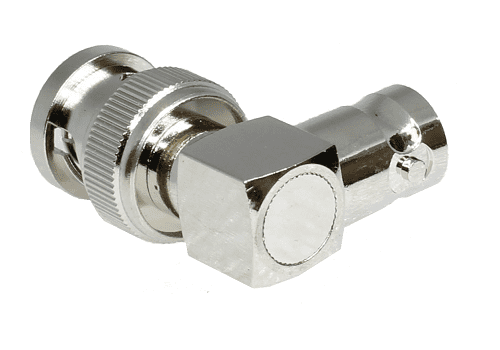

BNC Right-Angled Adaptor Jack/Plug 50 ohm.

Materials & Plating
Shell/Body - Brass, Nickel Plated
Contact Pin - Brass/Bronze, Gold Plated
Insulator - PTFE

Electrical Characteristics
Characteristic Impedance - 50 ohm
Frequency range - DC-2GHz
Dielectric Withstanding Voltage - 1500 (RMS)
Contact Resistance - Center  contact ≤1.5mΩ, Outer contact ≤1.mΩ
Insulation Resistance -  ≥5000MΩ

Mechanical Characteristics
Mating - Snap-on couplin
Durability - Mating cycle ≥500 cycle

Environmental Characteristic
Temperature Range: - 55°C to +155°C

Drawing
