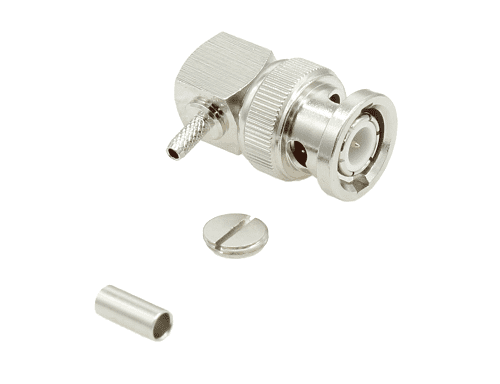

BNC Right-Angled Crimp Plug RG174, RG316

Qty From	Qty To	Unit Price
1	49	£2.92
50	99	£2.65
100	∞	£2.43

In Stock: 225

Product Code: 211-1574-070

Specification:

Materials & Plating
Shell/Body - Brass, Nickel Plated
Conductor - Brass, Gold Plated
Insulator - PTFE
Crimp Ferrule - Brass, Nickel Plated

Electrical Characteristics
Impedance - 50 ohm
Frequency Range Max. - DC - 2GHz
Dielectric Withstanding Voltage - 1500V(RMS)
Contact Resistance - Centre ≤ 1.5mΩ, Outer ≤ 1mΩ
Insulation Resistance - ≥ 5000mΩ

Mechanical Characteristics
Mating - snap-on coupling
Durability - ≥ 500 cycles

Environmental Characteristics
Temperature Range: - 55°C to +155°C

Assembly
Pin: Solder
Outer: 3.25 mm hex

Drawing

Assembly
Pin: Solder
Outer: 3.25 mm hex
