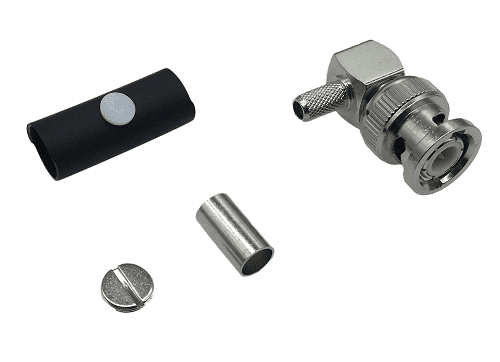

BNC Right-Angled Crimp Plug RG58.
| Qty From | Qty To | Unit Price |
|---|---|---|
| 1 | 99 | £1.56 |
| 100 | ∞ | £1.30 |
Product Code:
211-1558-088
Specification:
Materials & Plating
Body - Brass, Nickel Plated
Centre conductor - Brass, Gold Plated
Insulator - PTFE
Other - Brass, Nickel Plated
Electrical Characteristics
Impedance- 50 ohm
Frequency Range - DC-4GHz
VSWR - ≤1.25@(0-2)GHz
Dielectric Resistance - ≥5000M Ω
Working Voltage - 500V Max
Withstand Voltage - 1500V rms
Contact Resistance - Outer contact≤1.0mΩ;Center Contact≤1.5mΩ
Mechanical Characteristics
Durability - ≥ 500 Mating cycles
Environmental Characteristics
Temperature Range: -40℃～+85℃

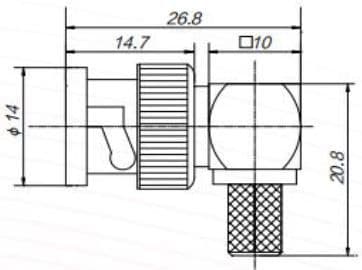

Drawing
Assembly
Pin: Solder
Outer: 5.41 mm hex
