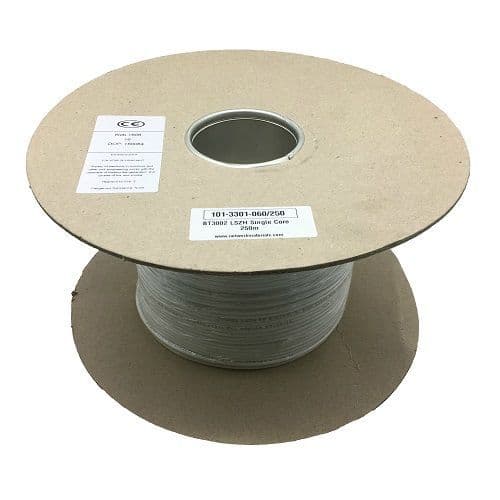

BT3002 Single Core LSZH 250m Drum

£87.50 ex. VAT 105.00 inc. VAT)

In Stock: 4


BT3002 Telecom coaxial cable is typically used with interconnection equipment, Digital telephone, Ericsson system and data links.

BT3002 consists of a 0.31mm solid plain copper conductor, solid polyethylene dielectric with two layers of tinned copper wire braid and sheathed overall in white LSZH.

CPR Class: E

Mechanical Characteristics
    Inner Conductor 0.31mm Bare Copper
    Dielectric Solid Polyethylene Insulation
    Screen 1 Tinned Copper  Braid
    Screen 2 Tinned Copper  Braid Coverage 90%
    Inner Sheath LSZH
    Outer Sheath LSZH
Insulation Diameter 1.95 +/-0.1mm
Inner Sheath Diameter 3.55 +/-0.15mm
Outer Sheath Diameter 16.0 +/-0.40mm
Rated Temperature 80°C
Electrical Characteristics
Inner Core DC Resistance @ 20°C ≤ 236 Ω/km
Inner Core DC Resistance @ 20°C ≤ 16.60 MΩ/km
Characteristic Impedance 75 ± 3Ohm
Rated Voltage 30V
Capacitance <67pF/m (nominal)
Velocity Ratio 0.666 +/-0.03
Attenuation (d/B 100m @ 20°C)
         50MHz < 4.8
Product Code:  101-3301-060/250
