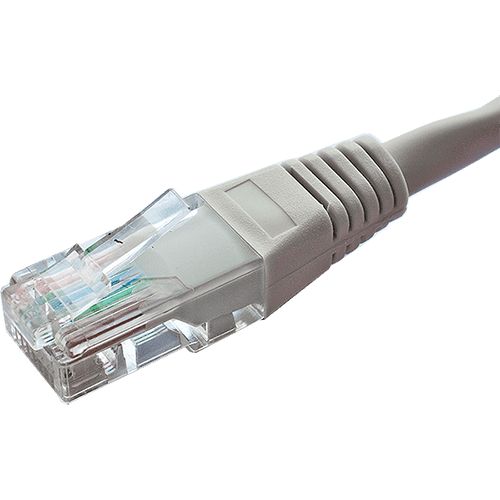

Cat5e 24 AWG Flush Moulded Patch Lead Grey 20m
£5.36 ex. VAT
(£6.43 inc. VAT)
Product Code:
315-67-1200
Specification:
Description
Category 5e UTP cables manufactured, tested and verified to the ISO11801 Class D+ and ANSI/EIA/TIA standards for enhanced performance. They are constructed with RJ45 plugs and quality UL approved Stranded Cat5e cable. These are available in 16 different lengths and manufactured in 11 colours.
Connector: RJ45
Connector: RJ45
Standard: Cat 5e
Type: U/UTP PVC
Brand: Premium
Specification
Category 5e UTP cables manufactured, tested and verified to the ISO11801 Class D+ and ANSI/EIA/TIA standards for enhanced performance. They are constructed with RJ45 plugs and quality UL approved Stranded Cat5e cable. These are available in 16 different lengths and manufactured in 11 colours.
Connector: RJ45
Connector: RJ45
Standard: Cat 5e
Type: U/UTP PVC
Brand: Premium
Specification
| Conductor | Material | Bare Copper |
| Size | 24 AWG | |
| Construction | 7/0.2 ± 0.015 mm | |
| Insulation | Material | HDPE |
| Thickness | MIN at any point: 0.15 mm MAX AVG: 0.25 mm | |
| Diameter | 0.96 ± 0.06 mm | |
| Pair Colours | Blue/White-Blue | |
| Orange/White-Orange | ||
| Green/White-Green | ||
| Brown/White-Brown | ||
| Elongation | MIN 300 % | |
| Tensile strength | MIN 1.682 Kg/mm² | |
| Sheath | Material | PVC Jacket |
| Thickness | MIN at any point: 0.40 mm MIN AVG: 0.45 mm | |
| Diameter | 5.3 ± 0.3 mm | |
| Colour | Grey [ RAL 7044 / Pantone Cool Grey 4C ] Red [ RAL 3031 / Pantone 186C ] Blue [ RAL 5012 / Pantone 7462C ] Green [ RAL 6016 / Pantone 3415C ] Yellow [ RAL 1023 / Pantone 143C ] Black [ RAL 9011 / Pantone 426C ] Violet [ RAL 4005 ] White [ RAL 9003 ] Orange [ RAL 2000 / Pantone 1585U ] Pink [ RAL 4003 ] Brown [ RAL 8023 / Pantone 1605C ] |
|
| Elongation | MIN 100% | |
| Tensile strength | MIN 1.407 Kg/mm² |
