Specification:

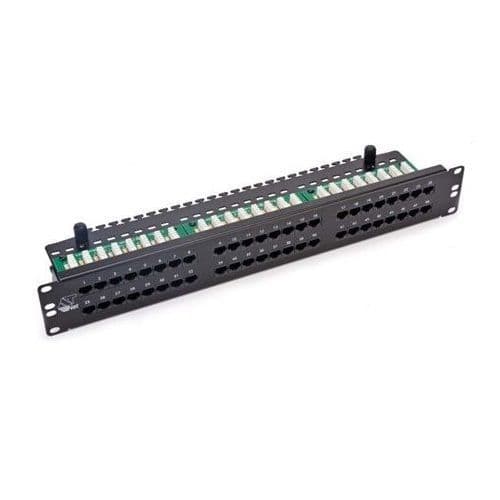

This 48 port variant is presented as a double row, fitting into just 1.5U.
Each panel is supplied with a fixing and earthing post and adhesive label field for individual port identification.
The integral cable management area provides fixing points for each cable. The fixing points are designed for maximum ease of use.
Simply fit the cable ties loosely to the cable, slide over the fixing point and tighten and The IDC terminations are colour coded to T568B.
The finish is semi-gloss black.

Each panel is supplied with a fixing and earthing post and adhesive label field for individual port identification.
The integral cable management area provides fixing points for each cable. The fixing points are designed for maximum ease of use.
Simply fit the cable ties loosely to the cable, slide over the fixing point and tighten and The IDC terminations are colour coded to T568B.
Fully Tested and UL approved to: | ISO/IEC JTC 1/SC25 11801:2002 TIA/EIA 568b.2-1 |
Dimensions | 1.5U high |
Colour | Semi-gloss black |
Termination | Krone style IDC coded to TIA/EIA 568B |
Management | Quick fit cable fixing point per port |
Sockets | RJ45 8 Contact, Gold Plated |
Included accessories | Cable ties, cage nute and screws, labelling kit |
The finish is semi-gloss black.
