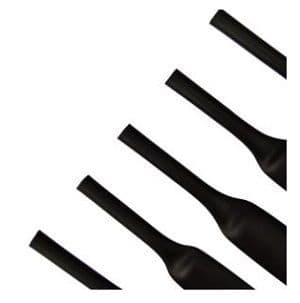

CHS31 Series (3:1 Ratio) 9.5mm, 1.2m Length
£0.88 ex. VAT
(£1.06 inc. VAT)
Product Code:
CHS31-PC-9.5
Specification:
CHS31 is a dual wall adhesive lined heatshrink tubing manufactured from flame retardant cross-linked polyolefin. This tubing may be used in a wide variety of electrical applications and provides excellent waterproofing and moisture protection. Its high shrink ratio makes it ideal for sealing irregular shapes.
| Product Specification | |
| Size Before Shrink | 9.5mm |
| Size After Shrink | 3mm |
| Length | 1.2m |
| Technical Specification | |
| Material | Polyolefin (With Hot Melt Adhesive) |
| Standard | UL Approved |
| Working Temp | -55ºC to +125ºC |
| Shrink Temp | 90ºC |
| Dielectric Voltage Withstand | 2500V, 60 Seconds, No Breakdown |
| ROHS Compliant | Yes |
| Zero Halogen | Yes |
| Flame Retardent | Yes |
