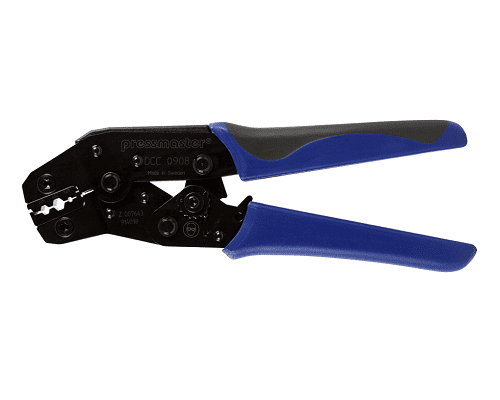

DCC-0908 Crimp Tool RG174, 179, 316
1.69mm/ 3.25mm/ 4.52mm
Read moreSpecification:
DCC 0908
DCC-0908 is a crimping tool for coaxial connectors, 3.25 mm, 4.52 mm, 1.69 mm/.128'', .178'', .067'', HEX-Crimp.
High strength, through hardened alloy steel construction
Versatile and easy to customize for right hand or left hand users
Full cycle crimp mechanism to ensure consistent, reliable crimp
Ratchet release mechanism to clear miscrimps and obstructions
Precision eccentric adjustment for consistent performance and ability to calibrate
Each tool has a unique serial number for traceability
TECHNICAL DATA
Length: 195 mm/7.68"
Width: 18 mm/0.71"
Height: 59 mm/2.32"
Weight: 350 gr/0.75 lb
Crimp dimensions mm/mm2: 3,25 mm/4,52 mm/1,69 mm
Crimp dimensions inch/AWG: .128''/.178''/.067''
Connector: Coaxial connector
Description: For example SMA, SMB, SMC on RG 174, RG 179.
Life span, cycles: 50,000
Cables: RG122/U, RG174A/U, RG179B/U, RG180B/U, RG187A/U, RG188A/U, RG279/U, RG303/U, RG316/U
Drawing
