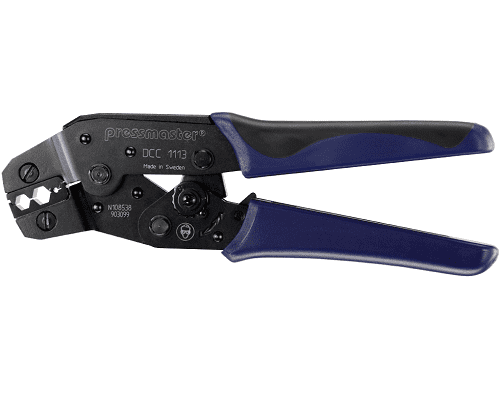

DCC-1113 Crimp Tool RG58, 59, 223

DCC 1113

DCC-1113 is a crimping tool for coaxial connectors, 5.41 mm, 6.48 mm, 1.69 mm/.255'', .213'', .067'', HEX-Crimp.

High strength, through hardened alloy steel construction
Versatile and easy to customize for right hand or left hand users
Full cycle crimp mechanism to ensure consistent, reliable crimp
Ratchet release mechanism to clear miscrimps and obstructions
Precision eccentric adjustment for consistent performance and ability to calibrate
Each tool has a unique serial number for traceability

TECHNICAL DATA
Length: 198 mm/7.8"
Width: 18 mm/0.71"
Height: 59 mm/2.32"
Weight: 350 gr/0.77 lb
Crimp dimensions mm/mm2: 5,41 mm/6,48 mm/1,69 mm
Crimp dimensions inch/AWG: 213''/.255''/.067''
Connector: Coaxial connector
Description: For example BNC, TNC on RG 58, RG 59, RG 62, RG 71, Thinnet.
Life span, cycles: 50,000
Cables: RG108A/U, RG142B/U, RG210/U, RG223/U, RG302/U, RG58C/U, RG59B/U, RG62A/U, RG62B/U, RG71B/U
