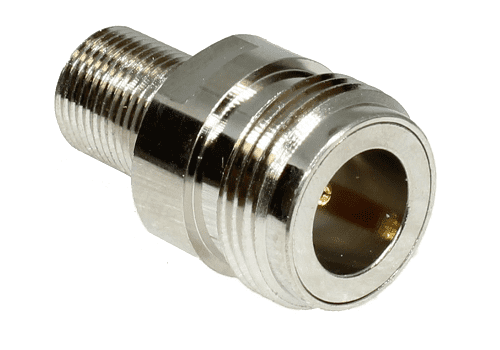

F Type Jack - N Jack (N Type 75 ohm Interface)

£3.68 ex. VAT (£4.42 inc. VAT)

In Stock: 50

Product Code:  290-5091-070

Specification:

Specification:

Materials & Plating
Shell/Body - Brass, Nickel Plated
Conductor - Bronze, Gold Plated
Insulator - PTFE

Electrical Characteristics
Impedance - 75 ohm
Frequency Range Max. - DC - 1GHz
Dielectric Withstanding Voltage - 500V (RMS)
Contact Resistance - Centre ≤ 10mΩ, Outer ≤ 5mΩ
Insulation Resistance - ≥ 1000mΩ

Mechanical Characteristics
Mating - N: 5/8-24UNEF-2A F:3/8-32UNEF-2A
Durability - ≥ 500 cycles

Environmental Characteristics
Temperature Range: - 55°C to +155°C

Drawing:
