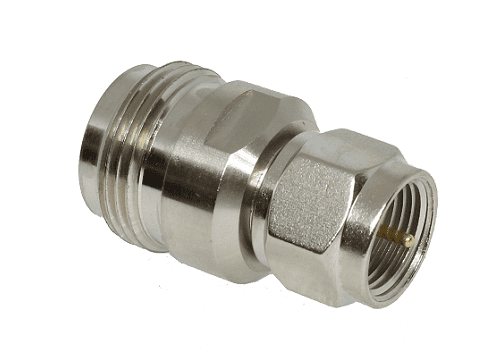

F Type Plug - N Jack (N Type 50 ohm Interface)

£2.74 ex. VAT (£3.29 inc. VAT)

In Stock: 50

Product Code:  290-5092C-070

Specification:

Specification:

Materials & Plating
Shell/Body - Brass, Nickel Plated
Conductor - Bronze, Gold Plated
Insulator - PTFE/ABS

Electrical Characteristics
Impedance - N: 50ohm  F: 75ohm
Frequency Range Max. - DC - 1GHz
Dielectric Withstanding Voltage - 500V (RMS)
Contact Resistance - Centre ≤ 10mΩ, Outer ≤ 5mΩ
Insulation Resistance - ≥ 1000mΩ

Mechanical Characteristics
Mating - N: 5/8-24UNEF-2A  3/8-32UNEF-2B
Durability - ≥ 500 cycles

Environmental Characteristics
Temperature Range: - 40°C to +85°C
