F Type Plug to N Plug Adaptor (N Type 50 ohm Interface)

£0.00 ex. VAT (£0.00 inc. VAT)

In Stock: 0

Product Code:  290-5164-070
Sorry, this item is out of stock. Please contact us for availability

Specification:

Materials & Plating
Shell/Body - Brass, Nickel Plated
Center Conductor - Brass, Gold Plated
Insulator - PTFE

Electrical Characteristics
Impedance - N:50Ω F:75Ω
Frequency Range Max. - DC - 1GHz
Dielectric Withstanding Voltage - 500V (RMS)
Contact Resistance - Center conductor ≤10mΩ, Outer conductor ≤ 5mΩ
Insulation Resistance - ≥ 1000mΩ

Mechanical Characteristics
Mating - F:3/8-32UNEF-2B N:5/8-24UNEF-2B
Durability - ≥ 500 cycles

Environmental Characteristics
Temperature Range: - 40°C to +85°C

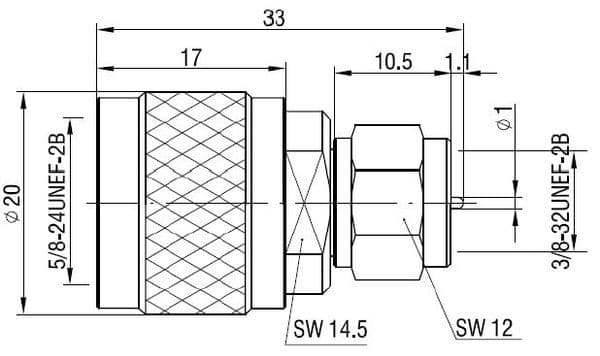

Drawing
