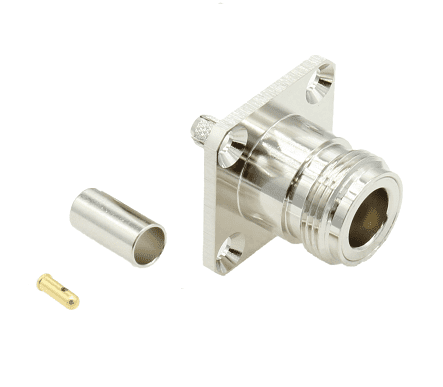

Specification:
Materials & Plating
Shell/Body - Brass, Nickel Plated
Conductor - Phosphor Bronze, Gold Plated
Insulator - PTFE
Electrical Characteristics
Impedance - 50 ohm
Frequency Range Max. - DC - 3GHz
Dielectric Withstanding Voltage - 2500V (RMS)
Contact Resistance - Centre ≤ 1mΩ, Outer ≤ 1mΩ
Insulation Resistance - ≥ 5000mΩ
Mechanical Characteristics
Mating - ≥ 5/8-24UNEF-2A
Durability - ≥500 cycle
Environmental Characteristics
Temperature Range: - 55°C to +155°C
Assembly
Pin: 1.72 mm hex
Outer: 5.41 mm hex

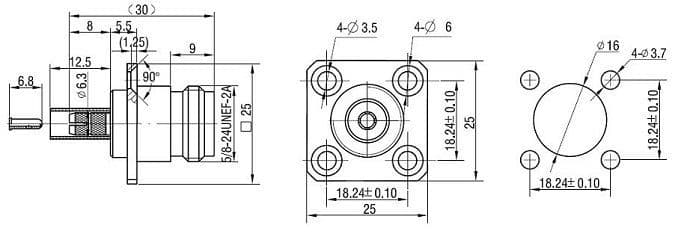

Drawing
