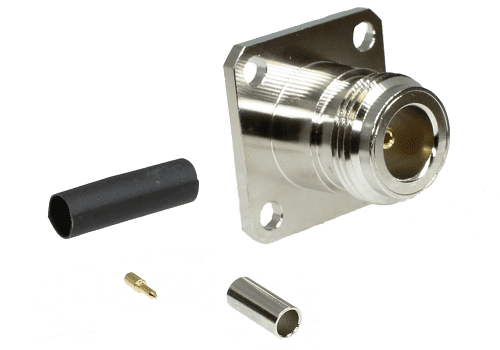

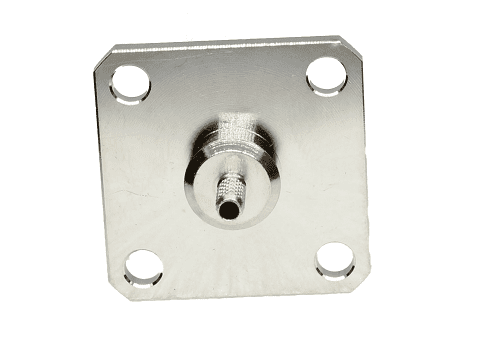

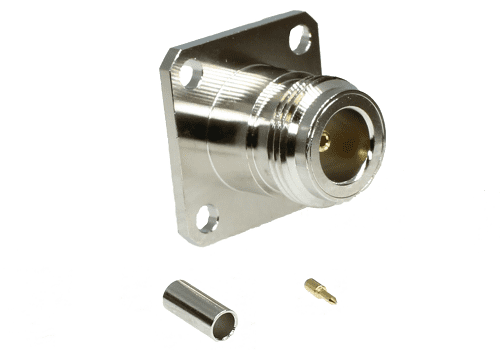

N Type 4 Hole Flange Crimp Panel Jack RG174/316

£2.60 ex. VAT (£3.12 inc. VAT)

In Stock: 152

Product Code: 220-660-082

Specification:

Materials & Plating
Shell/Body - Brass, Nickel Plated
Conductor - Bronze, Gold Plated
Insulator – PTFE

Electrical Characteristics
Impedance - 50 ohm
Frequency Range Max. - DC - 3GHz
Withstanding Voltage - 2500V (RMS)
Contact Resistance - Centre ≤ 1mΩ, Outer ≤ 1mΩ
Insulation Resistance - ≥ 5000mΩ

Mechanical Characteristics
Mating - ≥ 5/8-24UNEF-2A
Durability - ≥500 cycle

Environmental Characteristics
Temperature Range: - 55°C to +155°C

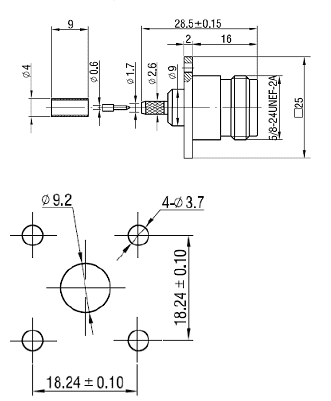

Drawing

Assembly
Pin: 1.06 mm hex
Outer: 3.25 mm hex
