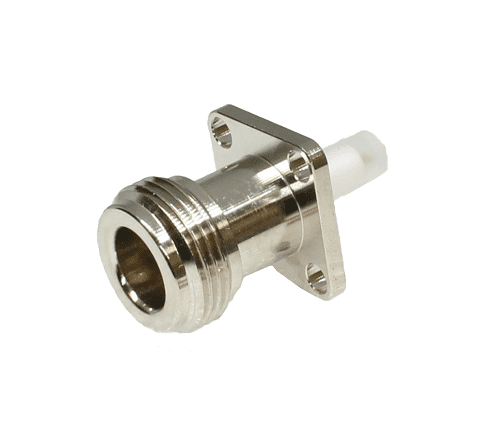

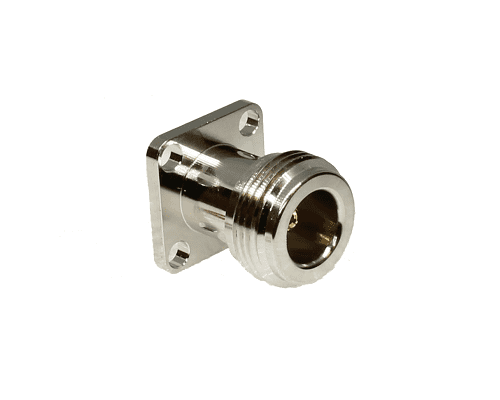

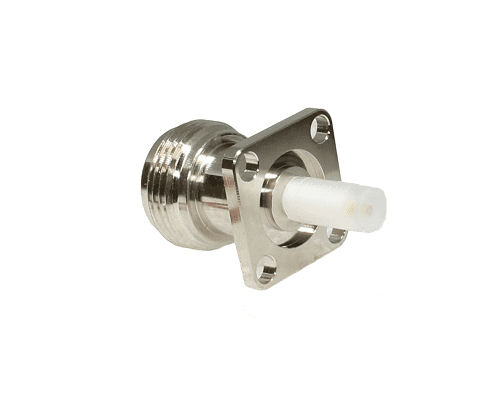

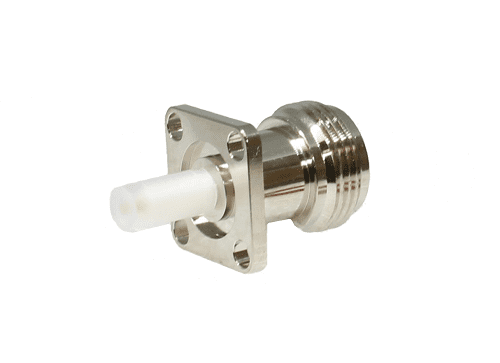

N Type 4 Hole Flange Panel Socket

£2.80 ex. VAT (£3.36 inc. VAT)

In Stock: 2

Product Code:  220-660-2504

Specification:

Specification:

Materials & Plating
Shell/Body - Brass, Nickel Plated
Conductor - Phosphor Bronze, Gold Plated
Insulator - PTFE

Electrical Characteristics
Impedance - 50 ohm
Frequency Range Max. - DC -6GHz
Dielectric Withstanding Voltage - 2500V (RMS)
Contact Resistance - Centre conductor ≤ 1mΩ, Outer  conductor ≤ 1mΩ
Insulation Resistance - ≥ 5000mΩ

Mechanical Characteristics
Mating - 5/8-24UNEF-2A
Durability - ≥ 500 cycles

Environmental Characteristics
Temperature Range: - 55°C to +155°C

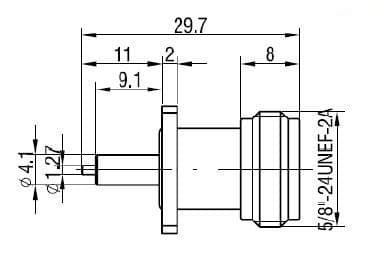

Drawing:
