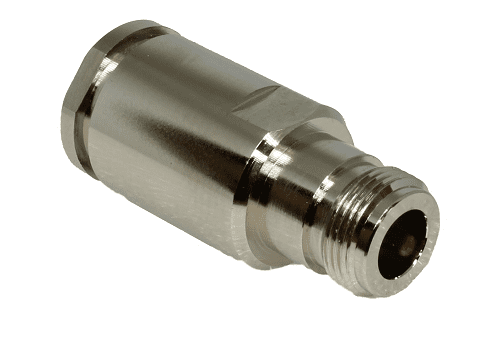

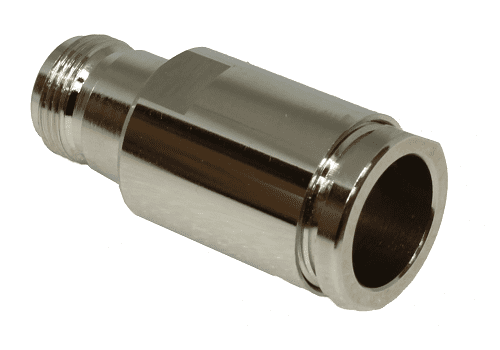

N Type Clamp Jack LMR600 Easy-Fit

£9.60 ex. VAT (£11.52 inc. VAT)

In Stock: 1

Product Code:  220-2160EZ-070

Specification:

Specification:

Materials & Plating
Shell/Body - Brass, Nickel Plated
Conductor - Bronze, Gold Plated
Insulator - PTFE

Electrical Characteristics
Impedance - 50 ohm
Frequency Range Max. - DC - 5.85GHz
Dielectric Withstanding Voltage - 2500V (RMS)
Contact Resistance - Centre ≤ 1mΩ, Outer ≤ 1mΩ
Insulation Resistance - ≥ 5000mΩ
VSWR - ≤1.55
IL - ≤0.35dB

Mechanical Characteristics
Mating - 7/16-28UNEF-2A
Durability - ≥ 500 cycles

Environmental Characteristics
Temperature Range: - 55°C to +155°C

Drawing:
