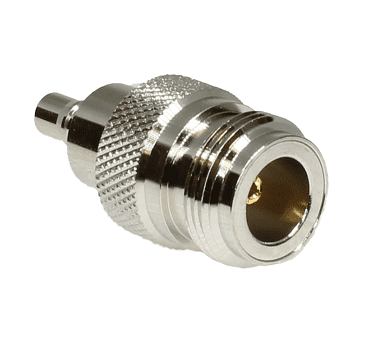

N Type Female - QMA Female Adaptor

Qty From Qty To Unit Price
1 99 £6.50
100 ∞ £4.78

In Stock: 22

Product Code:  290-5049-070

Specification:

Specification:

Materials & Plating
Shell/Body - Brass, Nickel Plated
Conductor - BERYLLIUM, Gold Plated
Insulator - PTFE

Electrical Characteristics
Impedance - 50 ohm
Frequency Range Max. - DC - 3GHz
Dielectric Withstanding Voltage - 1000V(RMS)
Contact Resistance - Centre ≤ 3mΩ, Outer ≤ 2.5mΩ
Insulation Resistance - ≥ 5000mΩ

Mechanical Characteristics
Mating - N: 5/8-24UNEF-2A,QMA: Snap-on coupling
Durability - ≥ 500 cycles

Environmental Characteristics
Temperature Range: - 40°C to +85°C

Drawing
