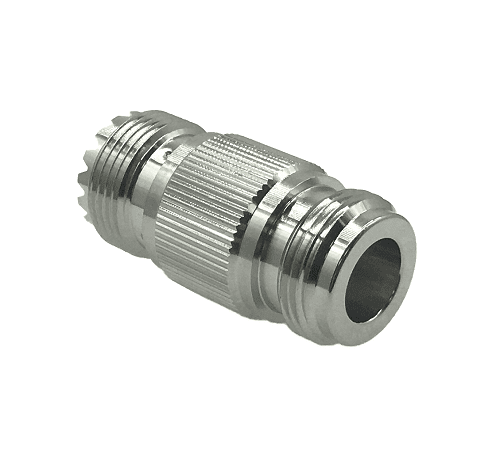

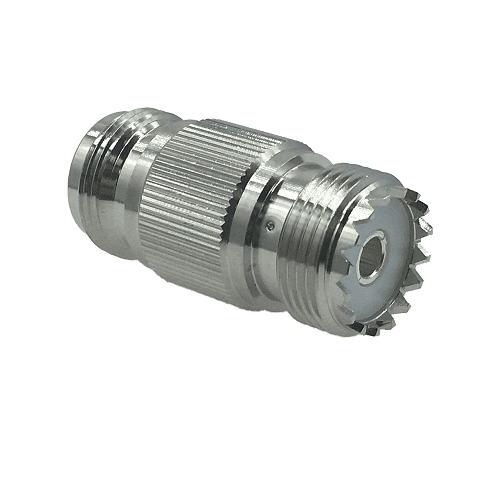

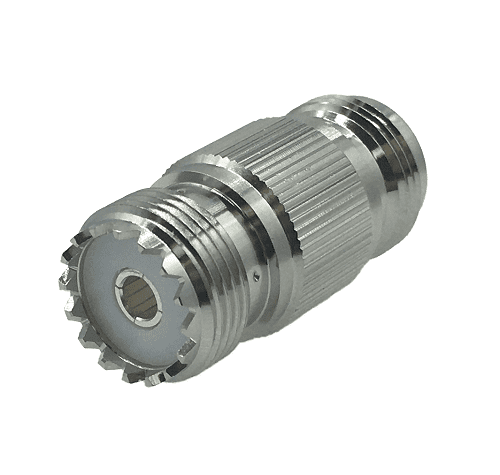

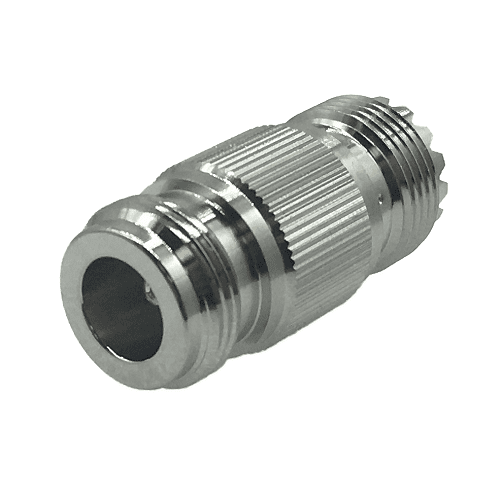

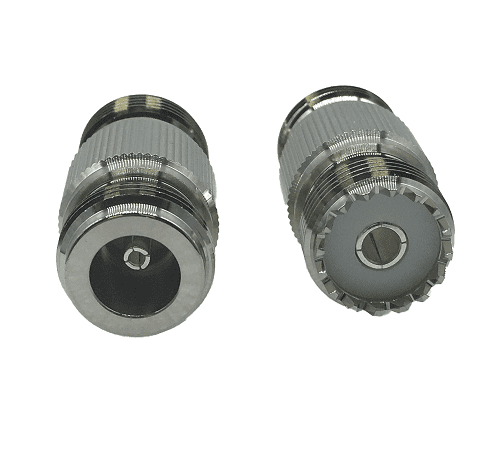

N Type Female - UHF Female
£2.88 ex. VAT
(£3.46 inc. VAT)
Product Code:
290-5125-070
Specification:
Specification:
Materials & Plating
Shell/Body - Brass, Nickel Plated
Conductor - Brass, Silver Plated
Insulator - PTFE
Electrical Characteristics
Impedance - 50 ohm
Frequency Range Max. - DC - 300GHz
Dielectric Withstanding Voltage - 750V(RMS)
Contact Resistance - Centre ≤ 5mΩ, Outer ≤ 5mΩ
Insulation Resistance - ≥ 5000mΩ
Mechanical Characteristics
Mating - N:5/8-24UNEF-2B, BNC:bayonet lock
Durability - ≥ 500 cycles
Environmental Characteristics
Temperature Range: - 40°C to +85°C

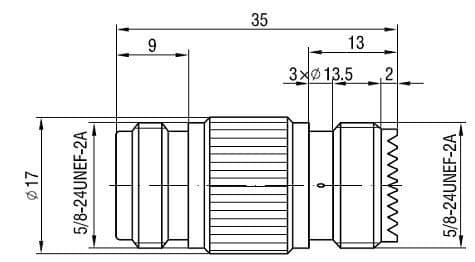

Drawing:
Materials & Plating
Shell/Body - Brass, Nickel Plated
Conductor - Brass, Silver Plated
Insulator - PTFE
Electrical Characteristics
Impedance - 50 ohm
Frequency Range Max. - DC - 300GHz
Dielectric Withstanding Voltage - 750V(RMS)
Contact Resistance - Centre ≤ 5mΩ, Outer ≤ 5mΩ
Insulation Resistance - ≥ 5000mΩ
Mechanical Characteristics
Mating - N:5/8-24UNEF-2B, BNC:bayonet lock
Durability - ≥ 500 cycles
Environmental Characteristics
Temperature Range: - 40°C to +85°C
Drawing:
