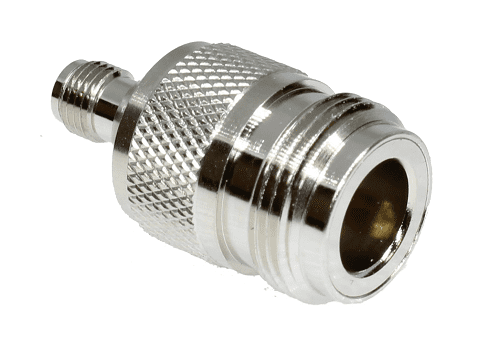

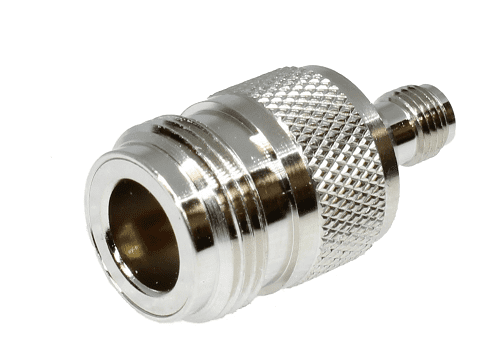

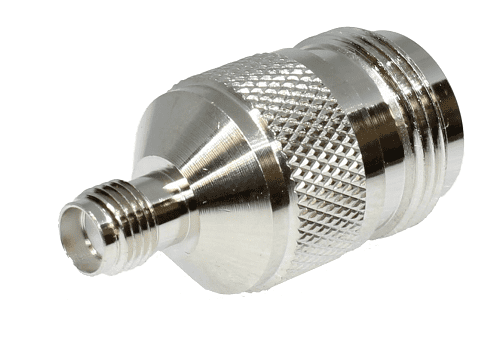

N Type Jack - SMA Jack

£3.00 ex. VAT (£3.60 inc. VAT)

In Stock: 3

Product Code: 290-5036-070

Specification:

Specification:

Materials & Plating
Shell/Body - Brass, Nickel Plated
Conductor - Phosphor Bronze, Gold Plated
Insulator - PTFE

Electrical Characteristics
Impedance - 50 ohm
Frequency Range Max. - DC - 6GHz
Dielectric Withstanding Voltage - 1000V (RMS)
Contact Resistance - Centre ≤ 3mΩ, Outer ≤ 2.5mΩ
Insulation Resistance - ≥ 5000mΩ

Mechanical Characteristics
Mating - N: 5/8-24UNEF-2A, SMA: 1/4-36UNS-2A
Durability - ≥ 500 cycles

Environmental Characteristics
Temperature Range: - 55°C to +155°C

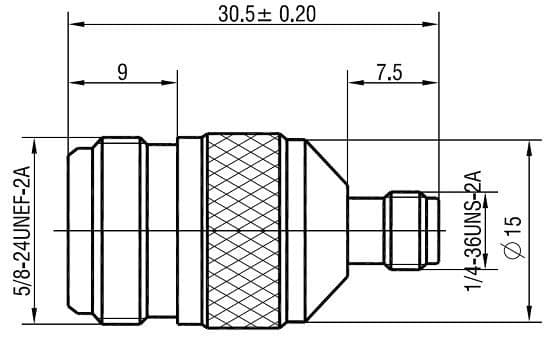

Drawing:
