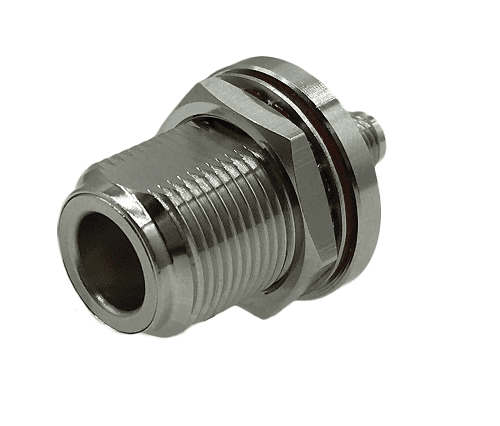

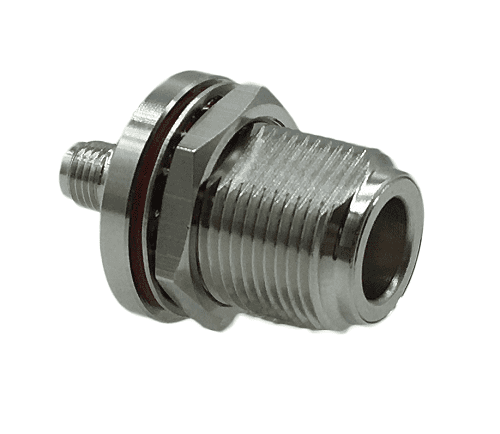

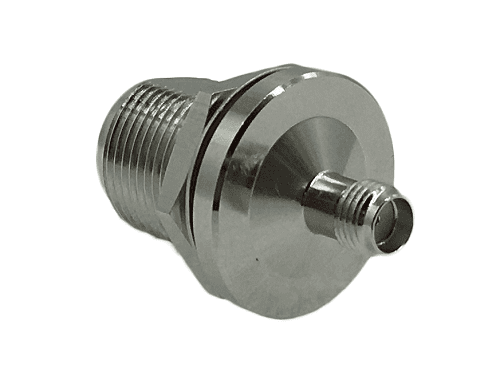

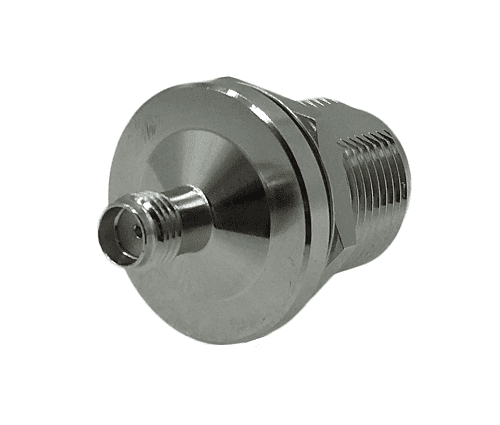

N Type Jack - SMA Jack Bulkhead Adaptor (31.5mm)

Material and Plating
Body - Brass, Nickel Plated
Insulator -  PTFE
Centre Conductor - Beryllium Bronze, Gold Plated
Others - Brass, Nickel Plated

Electrical
Characteristics Impedance - 50 ohm
Frequency Range - DC-6GHz
VSWR - ≤1.15
Insertion Loss (3G) - ≤ 0.1dB
Dielectric Resistance - ≥5000MΩ

Mechanical
Durability - Mating cycles ≥500 cycles

Environmental
Temperature Range - -40℃～+85℃
Water Tightness - IP65
Rosh-compliance - Full ROHS compliance

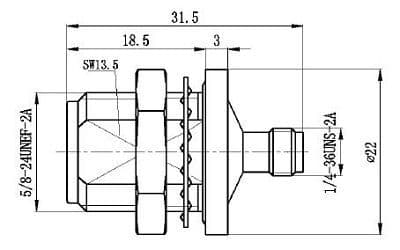

Drawing

*Dimensions are in millimeters
