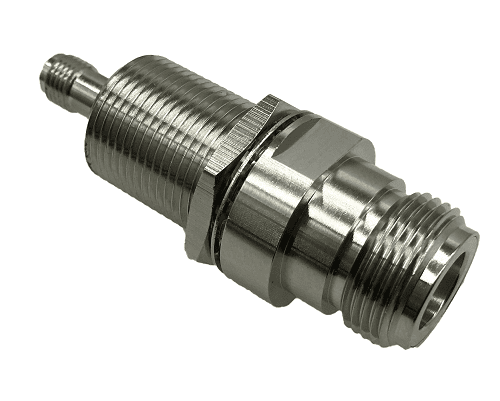

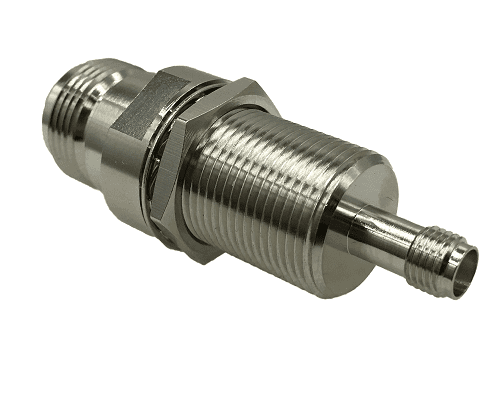

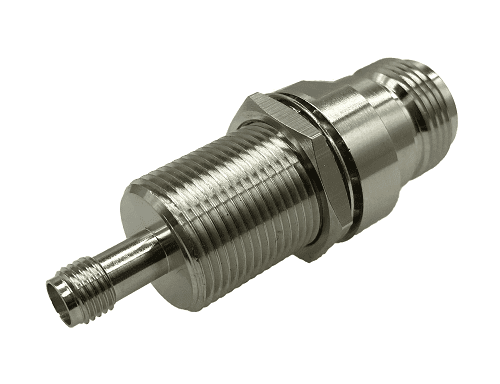

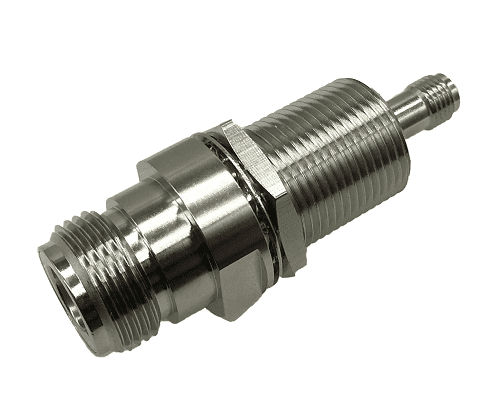

N Type Jack - SMA Jack Bulkhead Adaptor (53mm)

£5.50 ex. VAT (£6.60 inc. VAT)

In Stock: 0

Product Code: 290-5143-070

Specification:

Materials & Plating
Body - Brass, Nickel
conductor - Phosphor Bronze, Gold Plated
Insulator - PTFE

Electrical Characteristics
Characteristic Impedance- 50 ohm
Frequency Range Max. - DC - 3GHz
Dielectric Withstanding Voltage - 1500V RMS
Contact Resistance - Outer contact ≤ 10mΩ; Center Contact ≤ 2.5mΩ
Dielectric Resistance - ≥5000MΩ

Mechanical Characteristics
Mating - N: 5/8-24UNEF-2A,SMA:1/4-36UNS-2A
Durability - ≥ 500 cycles

Environmental Characteristics
Temperature Range: -40°C to +85 °C

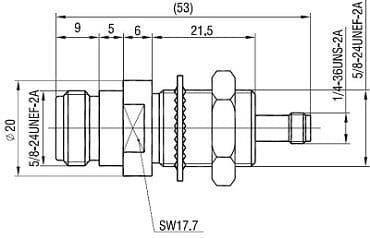

Drawing
