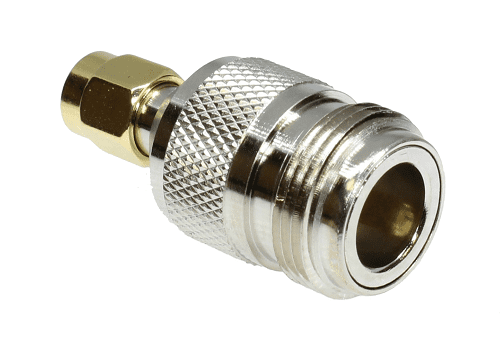

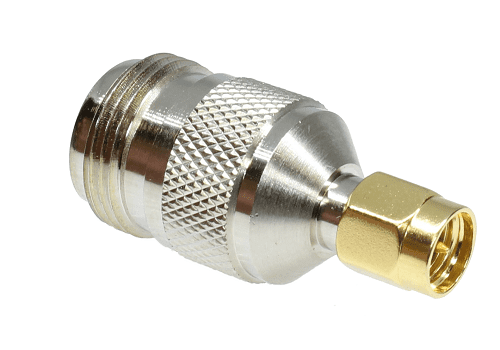

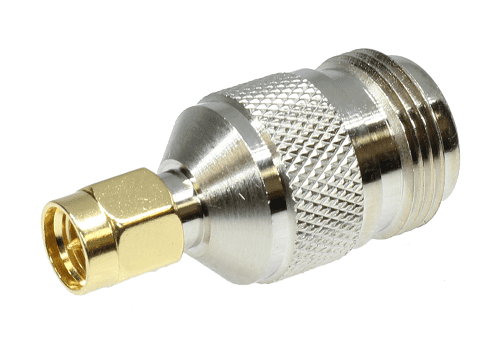

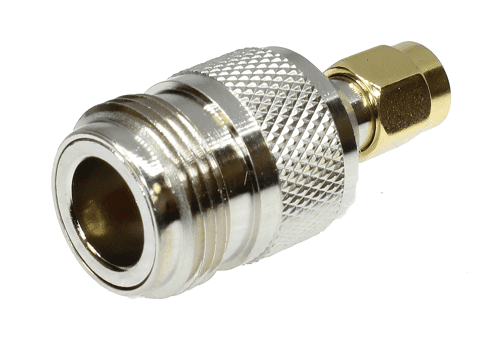

N Type Jack - SMA Plug (Gold)

£2.70 ex. VAT (£3.24 inc. VAT)

In Stock: 0

Product Code:  290-5028-070
Sorry, this item is out of stock. Please contact us for availability

Specification:

Specification:

Materials & Plating
Shell/Body - Brass, Nickel Plated
Conductor - Bronze, Gold Plated
Insulator - PTFE
Nut - Brass, Gold Plated

Electrical Characteristics
Impedance - 50 ohm
Frequency Range Max. - DC - 6GHz
Dielectric Withstanding Voltage - 1000V (RMS)
Contact Resistance - Centre ≤ 3mΩ, Outer ≤ 2.5mΩ
Insulation Resistance - ≥ 5000mΩ

Mechanical Characteristics
Mating - N: 5/8-24UNEF-2A,SMA:1/4-36UNS-2B
Durability - ≥ 500 cycles

Environmental Characteristics
Temperature Range: - 55°C to +155°C

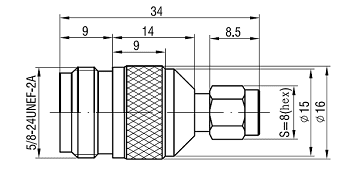

Drawing:
