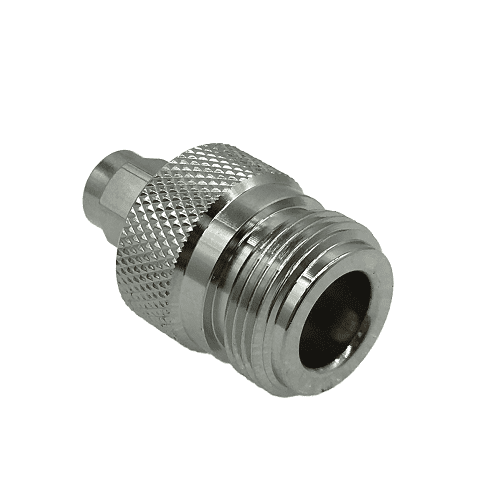

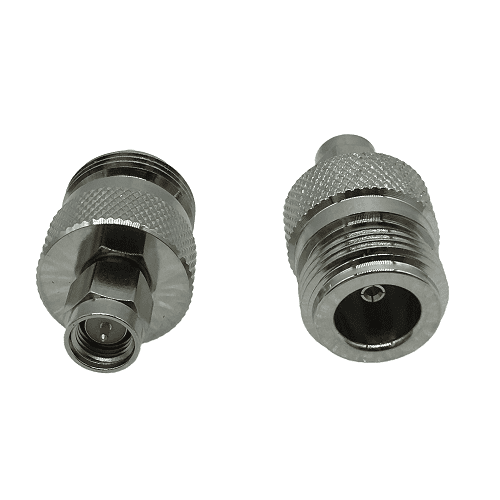

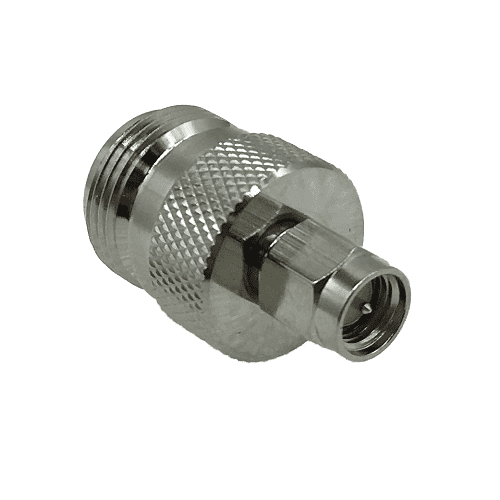

N Type Jack to SMA Plug (Nickel)

Materials & Plating
Body - Brass, Nickel/Gold Plated
Insulator - PTFE
Centre conductor - Phosphor Bronze, Gold Plated

Electrical Characteristics
Characteristic Impedance- 50 ohm
Frequency Range - DC-11GHz
VSWR - ≤1.20
Dielectric Withstanding Voltage - ≥4000V RMS,50Hz,at sea level
Dielectric Resistance - ≥10000MΩ

Mechanical Characteristics
Durability - ≥ 500 Mating cycles

Environmental Characteristics
Temperature Range: -40℃～+85℃

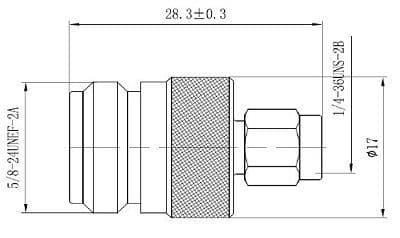

Drawing
