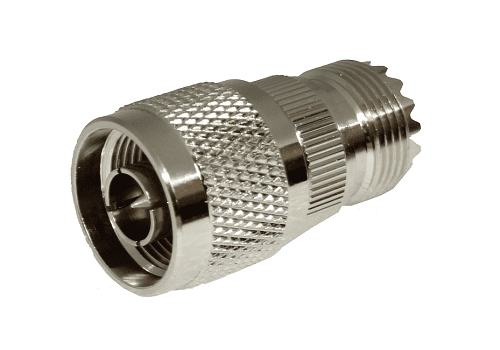

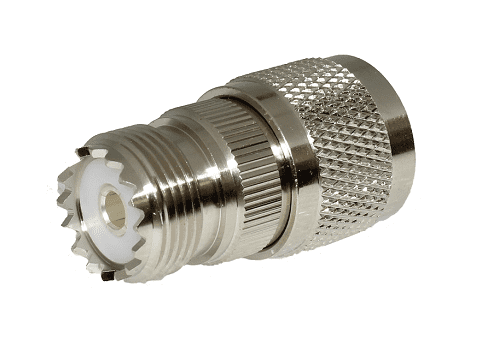

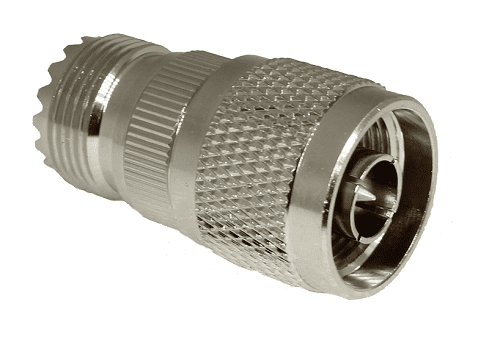

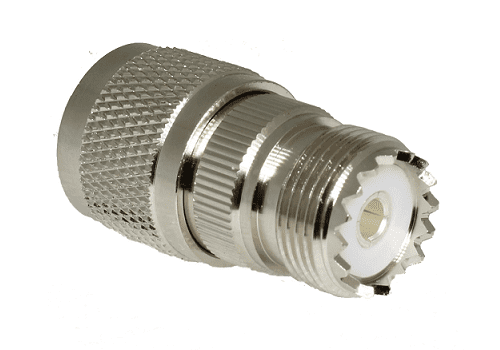

N Type Male - UHF Female

Qty From Qty To Unit Price
1 9 £2.40
10 49 £2.18
50 ∞ £1.99

In Stock: 51

Product Code:  290-5080-070

Specification:

Specification:

Materials & Plating
Shell/Body - Brass, Nickel Plated
Conductor - Brass, Silver Plated
Insulator - ABS

Electrical Characteristics
Impedance - 50 ohm
Frequency Range Max. - DC - 300GHz
Dielectric Withstanding Voltage - 750V (RMS)
Contact Resistance - Centre ≤ 5mΩ, Outer ≤ 5mΩ
Insulation Resistance - ≥ 5000mΩ

Mechanical Characteristics
Mating - N:5/8-24UNEF-2B, BNC:bayonet lock
Durability - ≥ 500 cycles

Environmental Characteristics
Temperature Range: - 55°C to +155°C

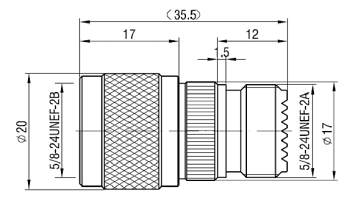

Drawing:
