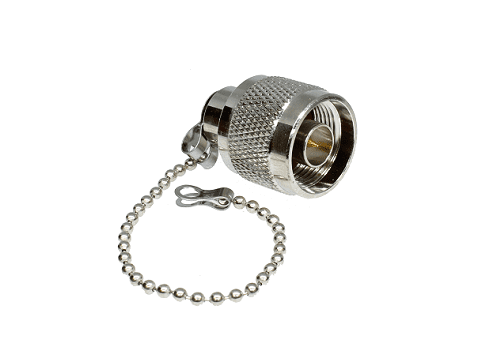

N Type Male Load (with chain) 2W DC-3GHz

£3.95 ex. VAT (£4.74 inc. VAT)

In Stock: 0

Product Code:  220-JR-2W
Sorry, this item is out of stock. Please contact us for availability

Specification:

Specification:

Materials & Plating
Shell/Body - Brass, Nickel Plated
Conductor - Phosphor Bronze, Gold Plated
Nut - Brass, Nickel Plated
Insulator - PTFE

Electrical Characteristics
Impedance - 50 ohm
Frequency Range Max. - DC - 3GHz
Dielectric Withstanding Voltage - 1000V(RMS)
Contact Resistance - Centre ≤ 1mΩ, Outer ≤ 1mΩ
Insulation Resistance - ≥ 5000mΩ
Voltage standing wave ratio - ＜1.2​​​​​​​

Mechanical Characteristics
Mating - 5/8”-24UNEF-2B
Durability - ≥ 500 cycles

Environmental Characteristics
Temperature Range: - 40°C to +85°C

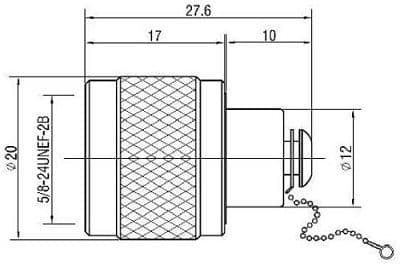

Drawing:
​​​​​​​
