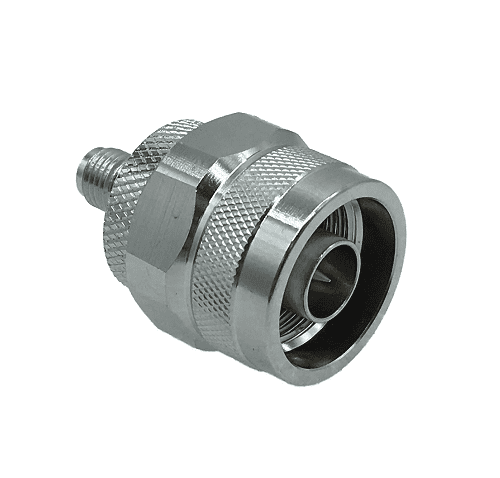

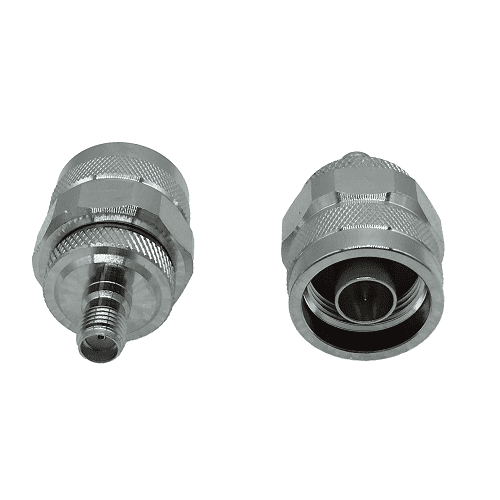

N Type Plug - SMA Jack Adaptor.

£2.20 ex. VAT (£2.64 inc. VAT)

In Stock: 24

Product Code: 290-5027-088

Specification:

Specification:

Materials & Plating
Shell/Body - Brass, Nickel/Gold Plated
Insulator - PTFE
Conductor - Phosphor Bronze, Gold Plated

Electrical Characteristics
Characteristic Impedance - 50 ohm
Frequency Range - DC - 3GHz
VSWR - ≤ 1.10
Dielectric Withstanding Voltage - 4000V (RMS) 50Hz , at sea level
Dielectric Resistance - ≥ 10000mΩ

Mechanical Characteristics
Durability - ≥ 500 cycles

Environmental Characteristics
Temperature Range: - 40°C to +85°C

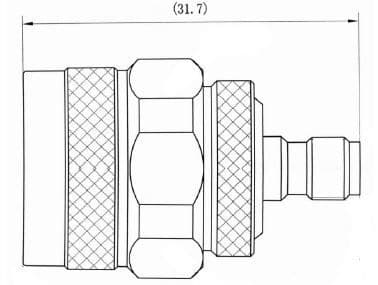

Drawing:
