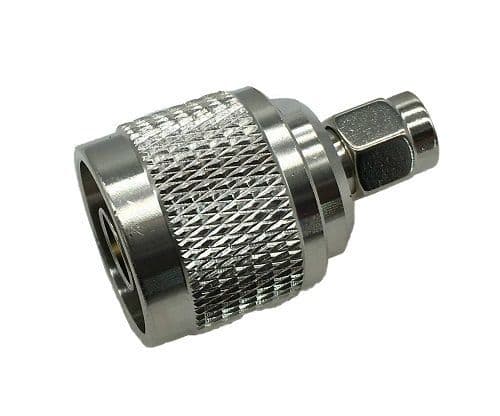

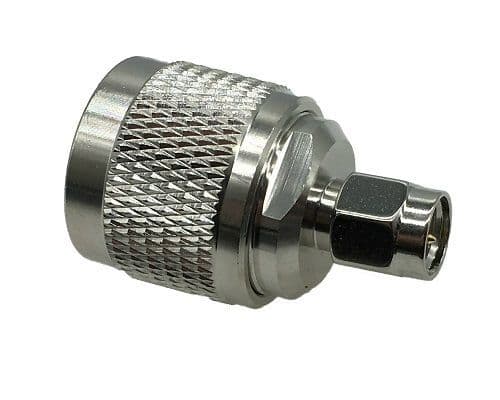

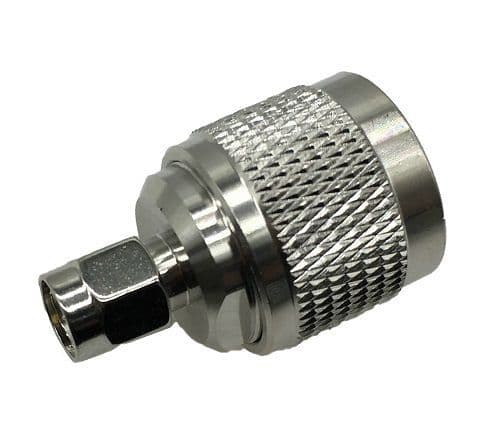

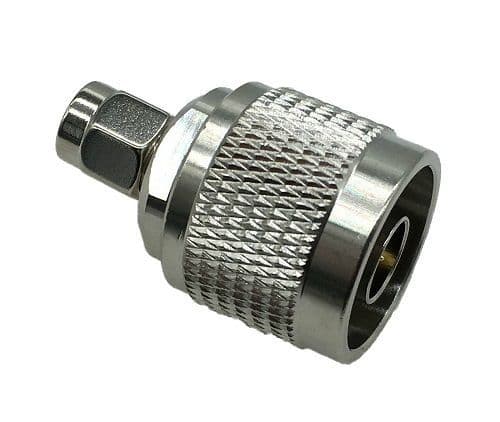

N Type Plug - SMA Plug Adaptor

£1.80 ex. VAT (£2.16 inc. VAT)

In Stock: 10

Product Code:  290-5035-088

Specification:

Materials & Plating
Shell/Body - Brass, Nickel/Gold Plated
Insulator - TEFLON
Centre Conductor - Phosphor Bronze, Gold Plated

Electrical Characteristics
Characteristic Impedance - 50 ohm
Frequency Range Max. - DC - 3GHz
VSWR - ≤1.08
Dielectric Withstanding Voltage - ≥2500V RMS,50Hz,at sea level
Insulation Resistance - 5000mΩ
Contact Resistance - Centre 1.5mΩ, Outer 1.0mΩ​​​​​​​​​​​​​​

Mechanical Characteristics
Durability - 500 cycles

Environmental Characteristics
Temperature Range: - 40°C to +85°C

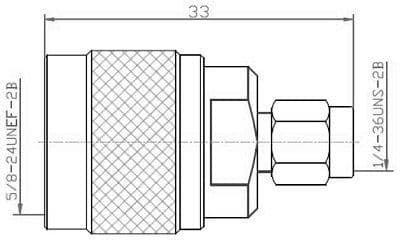

Drawing:

​​​​​​​
