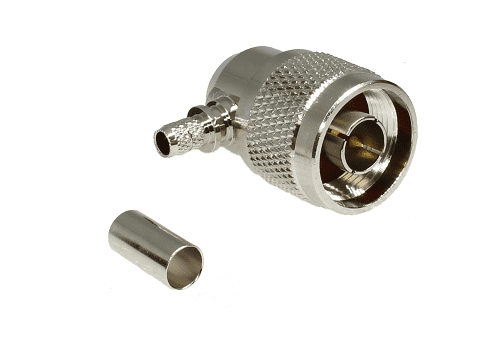

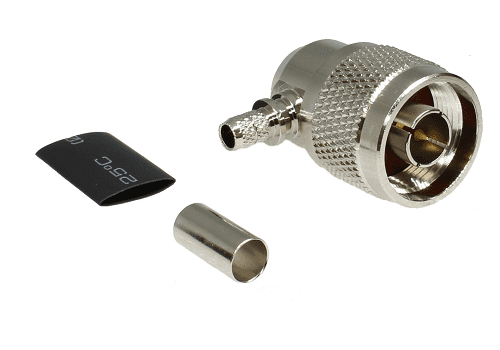

N Type Right-Angled Crimp Plug LMR200

£1.80 ex. VAT (£2.16 inc. VAT)

In Stock: 5

Product Code: 220-1520-070

Specification:

Specification:

Materials & Plating
Shell/Body - Brass, Nickel Plated
Conductor - Brass, Gold Plated
Insulator - PTFE

Electrical Characteristics
Impedance - 50Ω
Frequency Range Max. - DC - 3GHz
Dielectric Withstanding Voltage - 2500V (RMS)
Contact Resistance - Centre 1mΩ, Outer 1mΩ
Insulation Resistance - 5000mΩ

Mechanical Characteristics
Mating - 5/8"-24UNEF-2B
Durability - 500 cycles

Environmental Characteristics
Temperature Range: - 40°C to +85°C

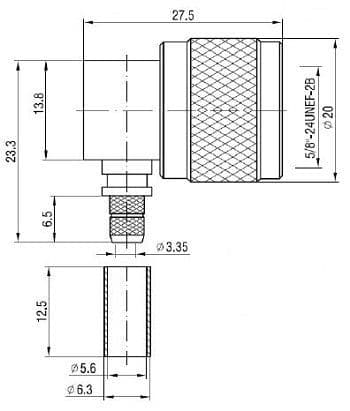

Drawing:

Assembly:
Pin: Solder
Outer: 5.41mm hex
