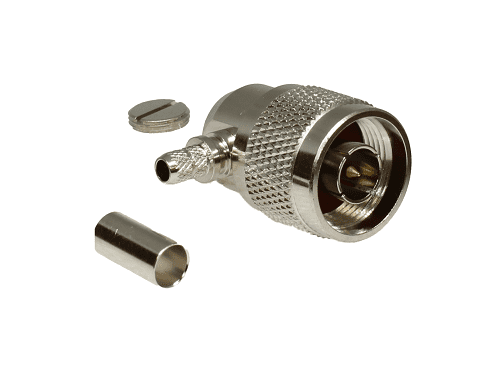

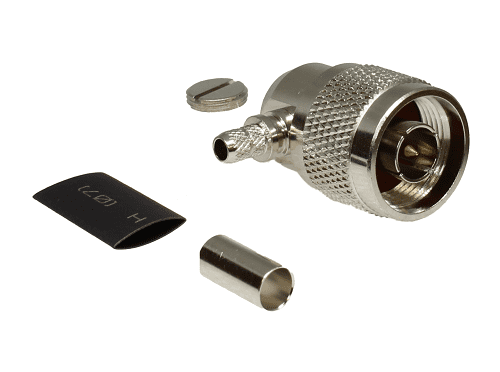

N Type Right-Angled Crimp Plug RG223, RG142

£1.75 ex. VAT (£2.10 inc. VAT)

In Stock: 79

Product Code: 220-1522-070

Specification:

Specification:

Materials & Plating
Shell/Body - Brass, Nickel Plated
Conductor - Brass, Gold Plated
Insulator - PTFE

Electrical Characteristics
Impedance - 50 ohm
Frequency Range Max. - DC - 3GHz
Dielectric Withstanding Voltage - 2500V (RMS)
Contact Resistance - Centre ≤ 1mΩ, Outer ≤ 1mΩ
Insulation Resistance - ≥ 5000mΩ

Mechanical Characteristics
Mating - 5/8-24UNEF-2B
Durability - ≥ 500 cycles

Environmental Characteristics
Temperature Range: - 55°C to +155°C

Drawing:

Assembly:
Pin: Solder
Outer: 5.41mm hex
