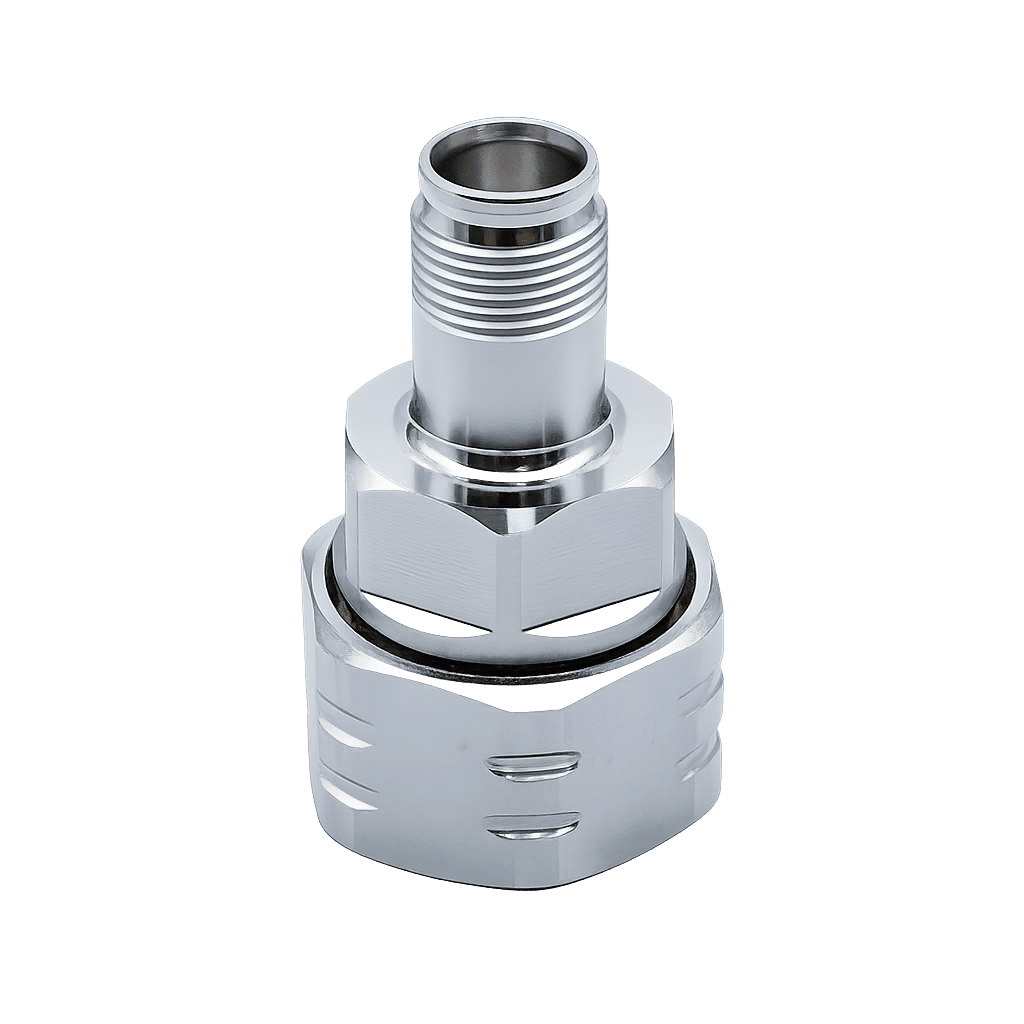

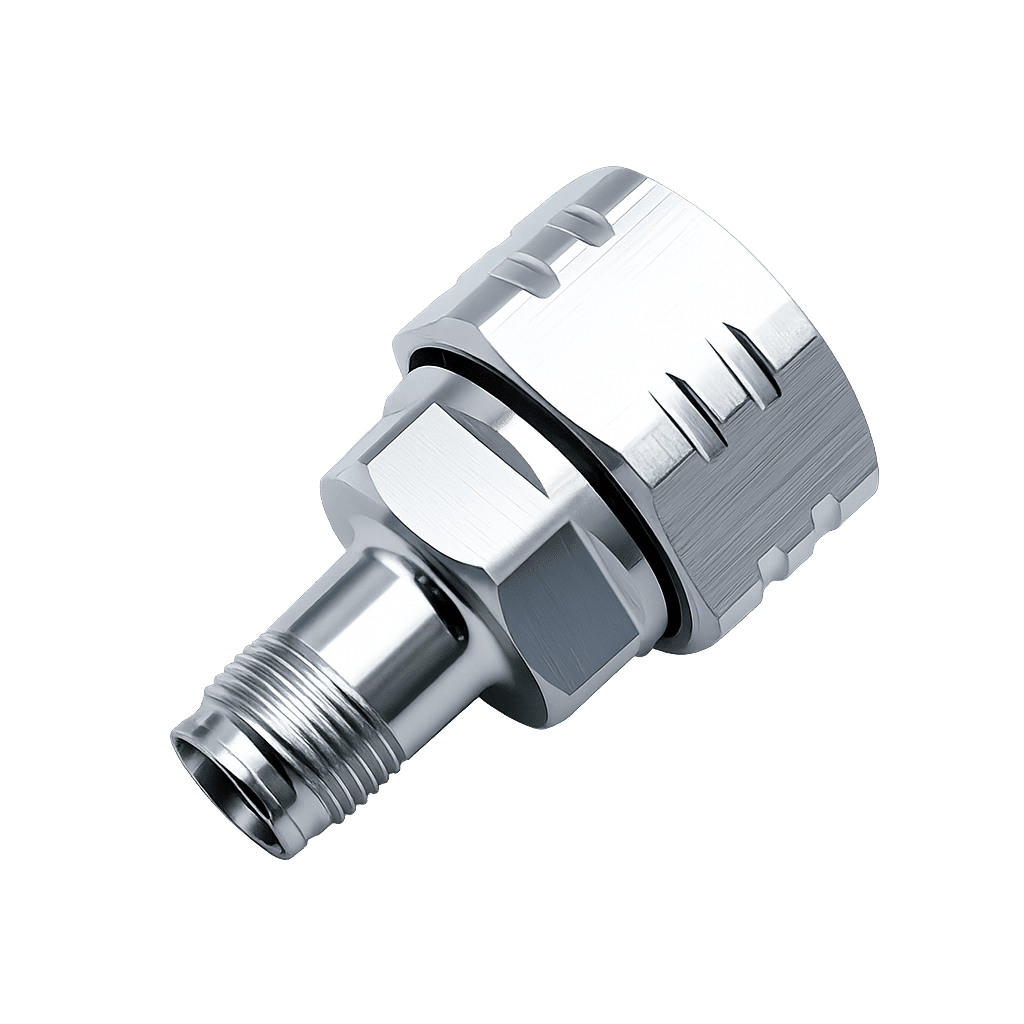

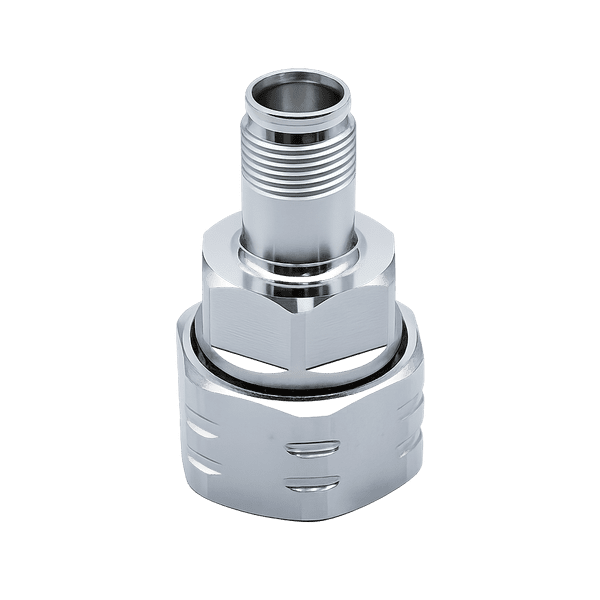

NEX10 Jack to 4.3/10 Plug

£8.32 ex. VAT (£9.98 inc. VAT)

In Stock: 6

Product Code:  290-5259-088

Specification:

Materials & Plating
Body - Brass, Tri-Alloy
Insulator - PTFE
Centre Conductor - Brass, Gold Plated

Electrical Characteristics
Impedance - 50 ohm
VSWR - ≤1.10 (DC - 3GHz)
PIM ( @2-tonex20w) - ≤-160dBC
Insertion Loss - ≤0.05*√fdB
Dielectric Withstanding Voltage - ≥750V RMS,50Hz,at sea level
Dielectric Resistant - ≥5000MΩ
Contact Resistance - Centre ≤ 2.5mΩ, Outer ≤ 3.0mΩ

Mechanical Characteristics
Durability - Mating ≥ 100 cycles

Environmental Characteristics
Temperature Range: - 40°C to +85°C
RoHS-compliance - Full RoHS compliance
Salt-fog test - 96h

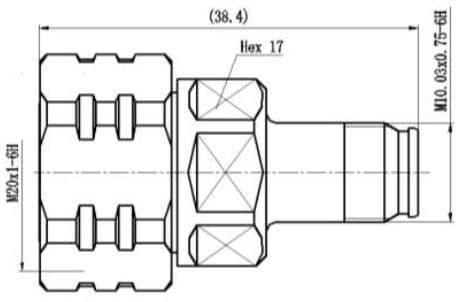

Drawing:
