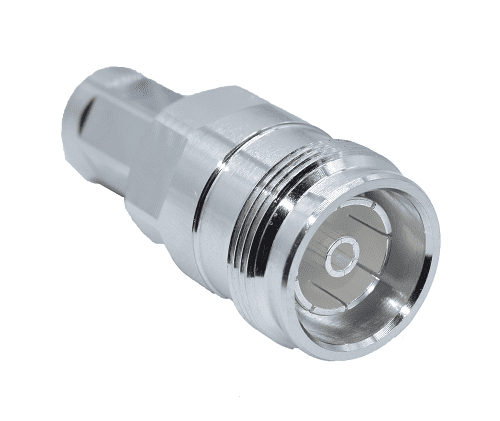

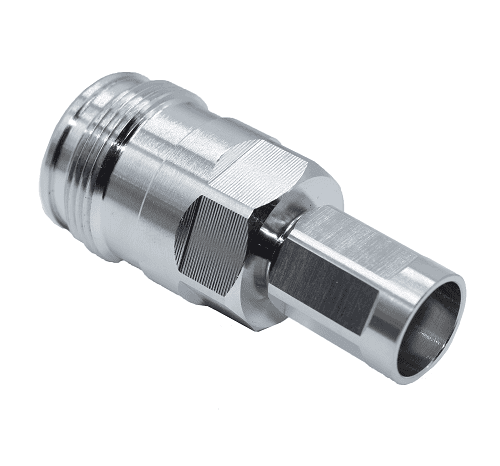

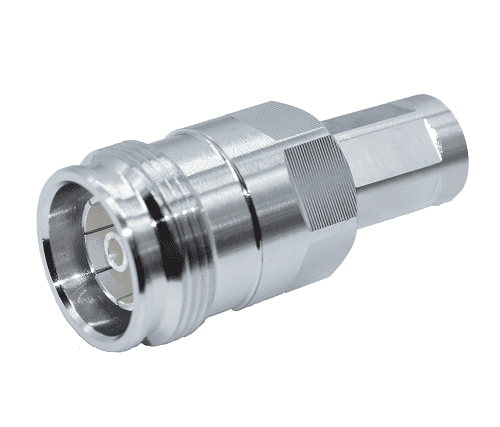

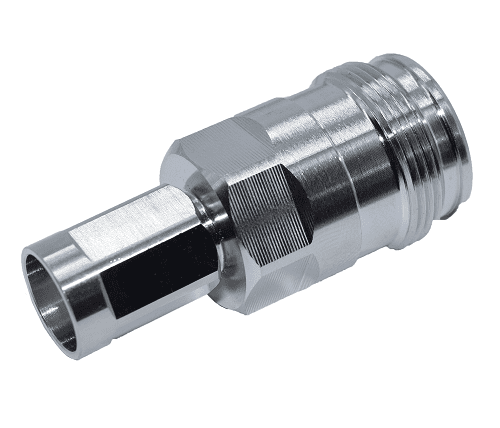

NEX10 to Plug 4.3/10 Jack
£7.94 ex. VAT
(£9.53 inc. VAT)
Product Code:
290-5258-088
Specification:
Materials & Plating
Body - Brass, Tri-Alloy
Insulator - PTFE
Centre Conductor - Brass, Gold Plated
Electrical Characteristics
Impedance - 50 ohm
Frequency Range Max. - DC - 3GHz
VSWR - ≤1.10
PIM ( @2-tonex20w) - ≤-160dBC
Insertion Loss - ≤0.05*√fdB
Dielectric Withstanding Voltage - ≥750V RMS,50Hz,at sea level
Dielectric Resistant - ≥5000MΩ
Contact Resistance - Centre ≤ 2.5mΩ, Outer ≤ 3.0mΩ
Mechanical Characteristics
Durability - Mating ≥ 100 cycles
Environmental Characteristics
Temperature Range: - 40°C to +85°C
RoHS-compliance - Full RoHS compliance
Salt-fog test - 96h

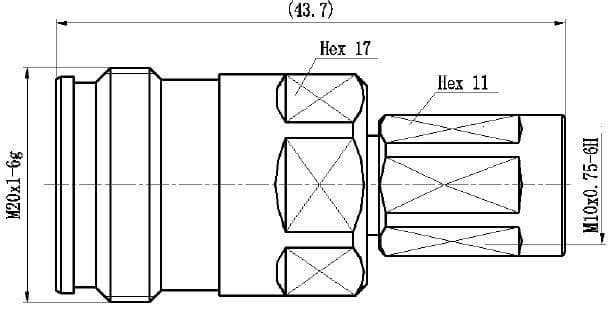

Drawing:
